Ambient Air Cleaner

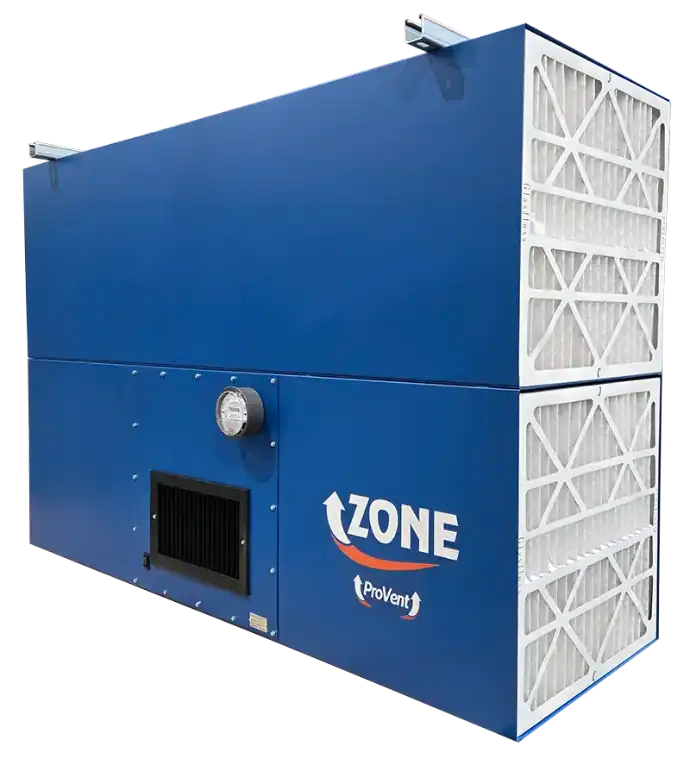

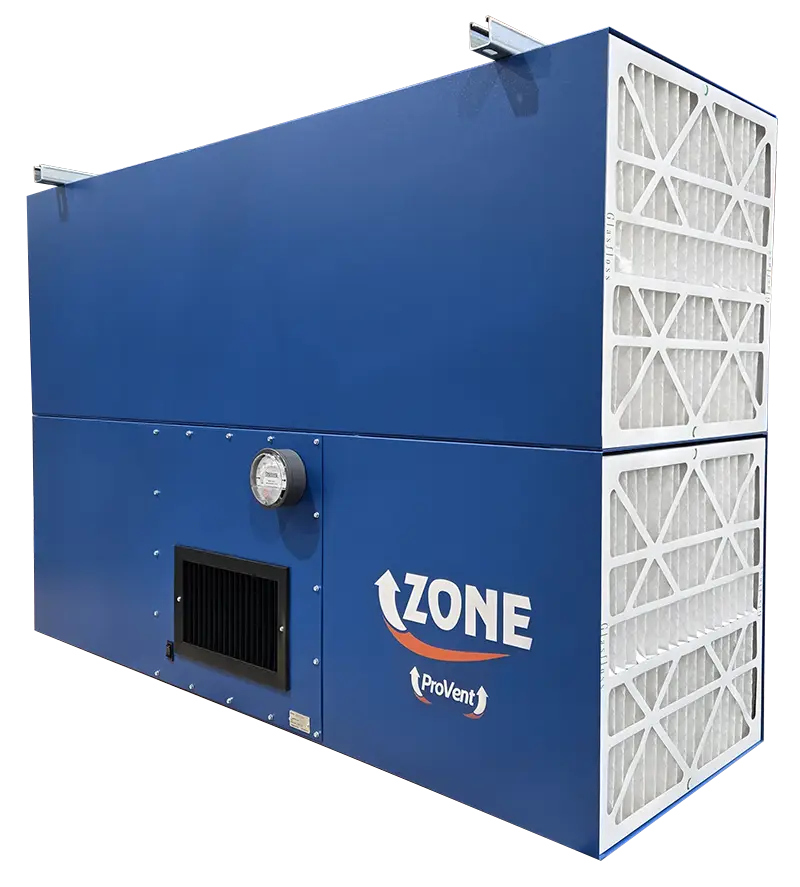

The ProVent Zone ambient air cleaner is a self-contained industrial air filtration unit designed for ambient air cleaning to remove airborne dust in rooms and open work areas where source capture is not practical. Available in multiple configurations from 1,100 to 7,000 CFM, the Zone series helps improve indoor air quality with multi-stage filtration, simple installation, and flexible mounting options.
MADE IN THE USA
SHIPPED EVERYWHERE
Engineered for Your Application
No two applications are the same, and your dust collection system shouldn’t be either. ProVent designs and manufactures custom engineered dust collection systems built specifically for your process, facility, and performance requirements.
Submit request for information on stock Uni-Wash UC Series Wet Dust Collectors:
Subscribe
Be the first to get updates and specials
Share
The Zone series is built for facilities that need ambient air filtration rather than direct source capture. Units are available for ceiling or wall mounting, use multi-stage filtration, and are designed for simple setup and outside-end filter access for easier service. Standard ambient air filtration systems range from the Zone 1100 through the Zone 7000, with compact single-room units and larger ambient air cleaner configurations for bigger spaces.
Zone Range
- Zone 1100 to Zone 7000 models
- 1,100 to 7,000 CFM
- Ceiling or wall mount options
- MERV 8 pre-filtration with multiple primary filter options
- 48 to 72 dBA noise level at 5 ft., depending on model
The Zone ambient air cleaner is designed for spaces where airborne dust remains in the room and needs continuous air polishing. Common applications include smoky rooms, room air polishing, mixing and weighing environments, glove box media blasting environments, and food processing environments.
Common Applications
- Smoky rooms
- Room air polishing
- Mixing and weighing environments
- Glove box media blasting environments
- Food processing environments
The Zone series includes several standard configurations. Smaller models range from 1,100 to 3,000 CFM and use 115V single-phase motors with direct-drive blowers, while larger 3,500 and 7,000 CFM models use 2 HP TEFC motors and belt-drive blowers with 208-230/460V power options. Depending on the model, units weigh from 95 to 435 pounds and use MERV 8 pleated pre-filters with bag filters, charcoal after-filters, or HEPA after-filtration depending on the configuration.
Performance Range
- 1,100 to 7,000 CFM
- 95 to 435 lbs
- 115V single phase or 208-230/460V power, depending on model
- Direct-drive or belt-drive blower configurations
- 48 to 72 dBA at 5 ft.
Standard Filtration
- MERV 8 pre-filters
- MERV 11 main filtration on standard bag filter units
- Optional MERV 15 upgrade rated 95% down to 0.3 micron
- Optional HEPA upgrade rated 99.9% down to 0.3 micron
- Optional charcoal after-filters on select models

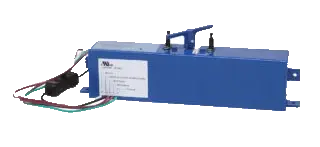

Optional Needlepoint Bipolar Ionization is available on 115/1/60 Zone units up to 3000 CFM. The NPBI option adds ions into the exhaust air stream to help agglomerate fine particles, reduce odors, and target pathogens. Third-party results include 69.09% for Tuberculosis, 93.50% for Norovirus, 96.24% for MRSA and Staphylococcus, 99.50% for Mold Spores, 99.69% for E. coli, and 99.4% for Coronavirus (COVID-19).
The Zone series can be configured with several mounting, filtration, and accessory options to fit the application. Available options include MERV 15 and HEPA filtration upgrades, chain mounting kits, pressure gauge / filter change indicators, eye bolts, wall mounting brackets, strut channel hanging brackets, aluminum mesh pre-filters, silencers, and alternate motor voltage options. Stainless steel construction and hanging channel options.
Available Options
- MERV 15 filtration upgrade
- HEPA filtration upgrade
- NPBI / ion option on qualifying 115V units
- Charcoal after-filters on select models
- Chain mounting kit
- Eye bolts
- Wall mounting brackets
- Strut channel hanging brackets
- Aluminum mesh pre-filter
- Silencer

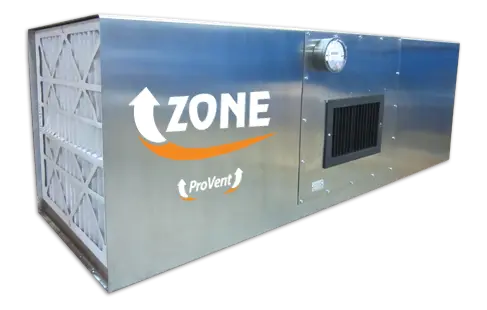

- Stainless steel construction
ProVent ambient air cleaners are designed for practical installation, reliable air polishing, and flexible filtration upgrades. The Zone series gives facilities a compact ambient air cleaner with multiple model sizes, mounting options, and filtration paths for spaces where cleaner, more breathable air is a priority.
Why ProVent
- Self-contained ambient air cleaning
- Multiple model sizes
- Flexible filtration upgrades
- Ceiling or wall mounting options
- Simple filter access
- Trusted industrial air cleaning expertise
Zone Ambient Air Cleaner (PDF)
What sizes are available?
The Zone series is available in models from Zone 1100 through Zone 4000H.
What airflow range does the series cover?
Depending on model, airflow ranges from 1,100 to 4,000 CFM.
What filtration options are available?
Standard units use MERV 8 pre-filtration and bag filters, with optional MERV 15, HEPA, charcoal, and aluminum mesh configurations on select models.
How can the unit be mounted?
The product materials describe ceiling and wall mounting options, with chain kits, eye bolts, wall brackets, and strut channel hanging brackets available.
Is NPBI available?
Yes. NPBI is listed as an option on 115/1/60 Zone units up to 3000 CFM.
Base Control Options
Low-cost options where advanced features are not needed. These are an excellent choice for someone who doesn't need NFPA compliance.
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Plastic Enclosure
- Float Water Level Control
- Sludge Conveyor Operation via VFD
- Motor Control via Rotary Knob
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- Float Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 110 Volt AC Components
- Indicator Lights for motor status
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
- Fully NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- 7-inch Touchscreen
Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, fault acknowledgement and reset)
- Ultrasonic Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
- Fully NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- 10-inch Touchscreen
Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, sludge conveyor, fault acknowledgement and reset)
- Ultrasonic Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Ready
- Variable Frequency Drive (VFD)
Provides manual or automatic control of fan RPM to ensure optimal scrub pressure at maximum efficiency.
