Portable Cartridge Collector

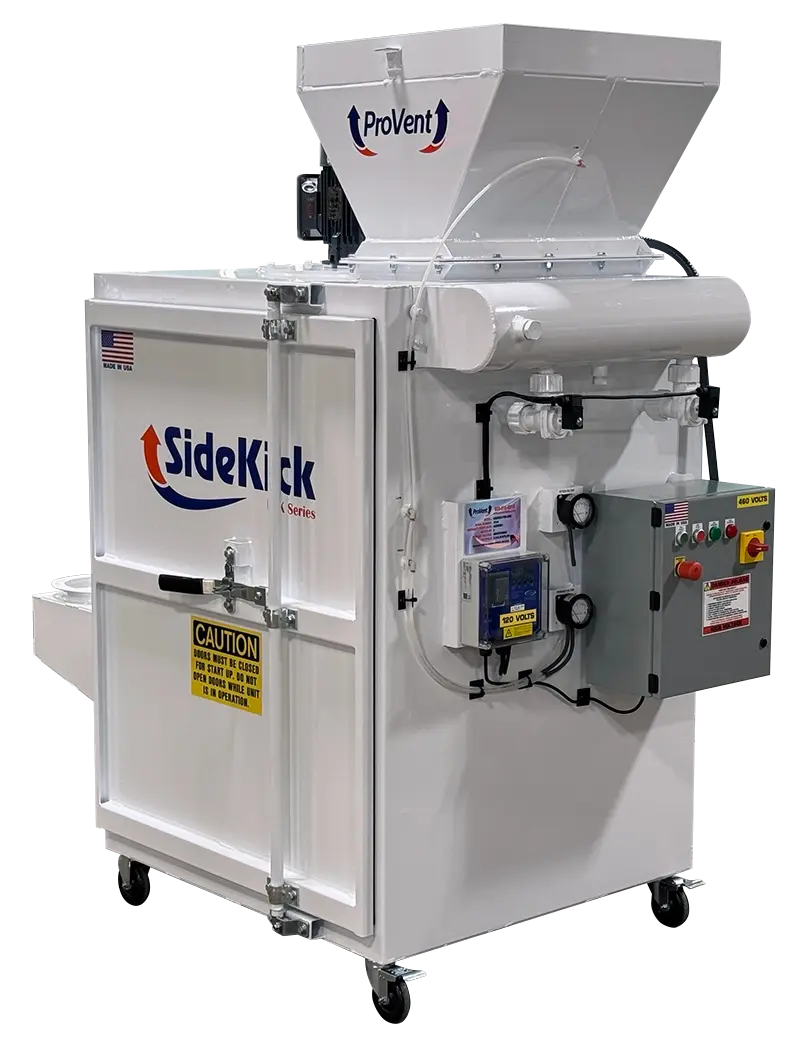

The SideKick PSK series is a portable dust collector designed for flexible source capture in industrial environments. Built as a self-contained cartridge dust collector, it delivers 500 to 2,000 CFM, uses NANO Web fire retardant MERV 15 filters, and combines portable operation with heavy-duty welded construction for reliable day-to-day dust collection.
No two applications are the same, and your dust collection system shouldn’t be either. ProVent designs and manufactures custom engineered dust collection systems built specifically for your process, facility, and performance requirements.
Submit request for information on stock Uni-Wash UC Series Wet Dust Collectors:
Subscribe
Be the first to get updates and specials
Share
The SideKick PSK series is engineered for facilities that need a compact industrial dust collector that can move between work areas or connect directly to equipment. Standard models range from the PSK-50 through the PSK-2000, with round-body, rectangular-body, and square-body configurations depending on airflow and filter count. Each unit is self-contained and portable, with vertically mounted filters sealed to the tube sheet through a dual rail single-push CAM locking assembly that helps prevent particulate bypass and makes filter changes easier.
SideKick PSK Range
- PSK-50 to PSK-2000 models
- 500 to 2,000 CFM
- 1 to 4 filters
- 250 to 1,000 sq. ft. of media
- 1 to 5 HP motors
PSK-50, 75 and 100
Indoor-Safe Operation: Designed with a dirty-side volume under 8 ft³ to fully comply with NFPA 660 guidelines for indoor placement without the need for structural explosion venting.
Point-of-Source Flexibility: Because it falls below the 8 ft³ NFPA threshold, this portable unit can be positioned directly next to the manufacturing process, eliminating long, expensive runs of explosion-isolated ductwork.
Reduced Compliance Costs: Eliminates the regulatory requirement for indoor collectors to feature chemical suppression or flame-arresting systems, saving on initial capital and annual maintenance.
The PSK-1500 and PSK-2000 do not meet this requirement and are not recommended for explosive dust.
The SideKick PSK series is well suited for portable and localized dust collection in manufacturing and shop environments. It is commonly used for welding fume collector applications, grinding dust collector applications, sanding dust collector applications, media blasting, cutting and brazing smoke capture, and mixing or weighing operations where a workstation dust collector or portable dust collection system is preferred. It can also be paired with extraction arms or connected to ductwork for added flexibility.
Common Applications
- Welding fume collector applications
- Grinding dust collector applications
- Sanding dust collector applications
- Media blasting
- Mixing and weighing
- Food processing applications
The SideKick PSK combines portability, efficient filtration, and rugged construction in one compact dust collector. Standard NANO Web fire retardant filters provide MERV 15 performance, while manual compressed air reverse pulse cleaning helps maintain airflow and extend filter life. The series also uses a spark-resistant, AMCA rated fan wheel and inlet cone molded from high-strength GRP polyamide, along with a solid welded steel housing and portable caster base for dependable industrial use.
Standard Features
- NANO Web fire retardant filters rated MERV 15
- Manual reverse pulse filter cleaning
- Self-contained portable design
- Spark-resistant AMCA rated fan wheel
- Heavy-duty welded steel construction
- Mounted differential pressure gauge
- Dual rail single-push CAM filter sealing
- Heavy-duty swivel casters
The SideKick PSK series is available in five standard models with airflow from 500 to 2,000 CFM. Smaller units from PSK-50 to PSK-100 use one filter and 250 square feet of media, while the PSK-1500 and PSK-2000 use 2 and 4 filters with 500 and 1,000 square feet of media. Motor sizes range from 1 to 5 HP, all models operate at 3450 RPM, and reverse pulse cleaning requires clean, dry compressed air at 80 to 90 PSI. Standard electrical configurations include 110 Volt / 1 Phase / 60 Hertz on the smaller models and 460 Volt / 3 Phase / 60 Hertz on the larger models.
Performance Range
- 500 to 2,000 CFM
- 1 to 4 filters
- 250 to 1,000 sq. ft. of media
- 1 to 5 HP motors
- 5.8 to 8.7 in. wg total static pressure
- 80 to 90 PSI compressed air
Standard Construction
- 12 gauge and 3/16 in. solid welded mild steel housing
- Optional stainless steel construction
- NEMA 4X or NEMA 12 motor controls by model
- Durethane DTM external coating
- Mounted Minihelic differential pressure gauge
- Heavy-duty locking casters
The SideKick PSK series can be configured with several options to match application, mobility, and air quality requirements. Available upgrades include SideArm extraction arms with up to 10-foot reach, hopper and leg stand with collection drum, HEPA after-filtration, auto pulse controller for on-demand and off-line pulsing, stainless steel construction for food applications, exhaust silencer, spark trap, stub legs in place of casters, and alternate primary filter options.
Available Options
- Extraction arms
- Hopper / leg stand / collection drum
- HEPA after-filter
- Auto pulse controller
- Stainless steel construction
- Exhaust silencer
- Spark trap
- Stub legs
ProVent industrial dust collectors are built for dependable performance, practical operation, and long-term durability in demanding shop environments. The SideKick PSK series gives customers a portable dust collector with strong filtration, flexible configuration options, and the ability to serve as either a mobile workstation dust collector or a direct-connect dust extraction system for specific equipment and processes.
Why ProVent
- Portable self-contained design
- Heavy-duty construction
- High-efficiency filtration
- Flexible configuration options
- Manual or auto pulse cleaning
- Trusted dust collection expertise
Side-Kick PSK Series (PDF)
What sizes are available?
The SideKick PSK series is available in five standard models from PSK-50 through PSK-2000.
What airflow range does the series cover?
Depending on the model, airflow ranges from 500 to 2,000 CFM.
What filters come standard?
The system uses NANO Web fire retardant MERV 15 filters.
Can the unit be used with extraction arms?
Yes. The PSK series can be paired with optional SideArm extraction arms or connected directly to ductwork.
What compressed air is required?
Reverse pulse cleaning requires clean, dry, consistent compressed air at 80 to 90 PSI.
Base Control Options
Low-cost options where advanced features are not needed. These are an excellent choice for someone who doesn't need NFPA compliance.
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Plastic Enclosure
- Float Water Level Control
- Sludge Conveyor Operation via VFD
- Motor Control via Rotary Knob
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- Float Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 110 Volt AC Components
- Indicator Lights for motor status
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
Our feature rich control panel with touchscreen controls.
- NEMA 3R/4/12 Enclosure
- 7-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA Filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Optional
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Continuous pulsing
ProVent's premier control panel for Intercept products. The AccuPulse PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.
- NEMA 3R/4/12 Enclosure
- 10-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Ready
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Auto adjust Start/Stop pulse points
- Continuous pulsing
- Variable Frequency Drive (VFD)
- Provides manual or automatic control of fan RPM to ensure optimal system pressure at maximum efficiency for rated CFM.
Side-Kick PSK Specifications
