Controls Engineering
ProVent Controls Engineering services help manufacturers improve automation, consistency, safety, and process visibility across dust collection systems and other industrial equipment. Whether integrating with existing equipment or building a new automated process, ProVent delivers custom control solutions designed around the specific needs of the application.
MADE IN THE USA
SHIPPED EVERYWHERE
Engineered for Your Application
No two processes are exactly alike, and your control system should be built to match the way your equipment operates. ProVent provides custom controls engineering solutions designed around your application, facility requirements, and automation goals.
Submit request for information on stock Uni-Wash UC Series Wet Dust Collectors:
Subscribe
Be the first to get updates and specials
Share
ProVent works with OEM manufacturers that need custom control panels and automation support for the equipment they produce. Our team can help develop standardized, application-specific OEM control panels systems that improve repeatability, simplify field support, and create a more consistent user experience across your equipment line.
OEM Control Capabilities
- Custom OEM control panel design
- Standardized panel builds for repeat production
- PLC, HMI, and automation integration
- UL 508A compliant panel construction
- Process interlocks and operator safety features
- Touchscreen controls and alarm monitoring
- Support for existing equipment redesigns
- Integration with customer-specified components
ProVent control panels are built with industrial-grade components selected for reliability, safety, and long-term performance in demanding environments. Based on the control hardware and component platforms used in ProVent systems, our panels can incorporate branded PLC, HMI, circuit protection, enclosure cooling, and automation components to match the needs of the application.
Control Components Used in ProVent Panels
- Keyence PLC components
- Weintek HMI touchscreens
- Pfannenberg enclosure cooling units
- Eaton motor protection components
- Lovato circuit protection components
- Trio Motion Technology automation components
- Allen-Bradley Systems
- Invertek Drives
As a UL 508A Certified Panel Shop, ProVent builds industrial control panels that meet recognized safety standards and support compliance with national and local electrical codes. This gives customers added confidence that their control panel is designed and built with safety, reliability, and code requirements in mind, while allowing ProVent to integrate industrial-grade control components from proven manufacturers.
ProVent panels can incorporate industrial control hardware from recognized manufacturers to support industrial automation, operator interface, circuit protection, and enclosure performance. Based on the components shown, ProVent systems use or integrate elements such as Keyence PLC hardware, Weintek HMI touchscreens, Pfannenberg enclosure cooling units, Eaton motor protection devices, Lovato miniature circuit breakers, and Trio Motion Technology automation components.
Example Control Hardware
- Keyence PLCs for machine and process control
- Weintek HMIs for operator interface and real-time system visibility
- Pfannenberg enclosure cooling units for panel temperature control
- Eaton motor protection components
- Lovato miniature circuit breakers
- Trio Motion Technology automation and motion-related components
ProVent control systems are designed to improve productivity, reduce manual intervention, and create more uniform equipment performance across the facility. Standardized controls can simplify training, troubleshooting, and maintenance, while automation helps reduce waste, improve manufacturing precision, and support safer day-to-day operation. Real-time system data through touchscreen HMIs and integrated control platforms gives operators and maintenance teams better visibility for informed decision-making and continuous improvement.
Key Advantages
- Increased productivity
- Uniform equipment controls
- Enhanced safety
- Waste reduction
- Lower production costs
- Real-time data visibility
- Higher process precision
ProVent offers several control panel configurations to match different equipment types, operating preferences, and safety requirements. From basic motor starting panels to advanced touchscreen controls with interlocks, alarms, and automated process functions, these panels give customers flexibility in how their systems are monitored and operated.
A practical control option for straightforward applications, the Across the Line Motor Starter provides basic motor control in a NEMA 1/12/3R plastic enclosure. Standard features include float water level control, sludge conveyor operation via VFD, and motor control through a rotary knob.
Standard Features
- Not NFPA 660 compliant
- NEMA 1/12/3R plastic enclosure
- Float water level control
- Sludge conveyor operation via VFD
- Rotary knob motor control
The Combination Motor Control panel adds more operator-facing features and flexible system control for applications that require additional visibility and protection. It includes a face-mounted rotary disconnect, E-stop, indicator lights, and optional remote start / stop capability.
Standard Features
- Not NFPA 660 compliant
- NEMA 3R / 4 / 12 enclosure
- Float water level control
- Face-mounted rotary disconnect
- E-stop
- 110 Volt AC components
- Indicator lights for motor status
- Remote start / stop optional
- Sludge conveyor operation via VFD

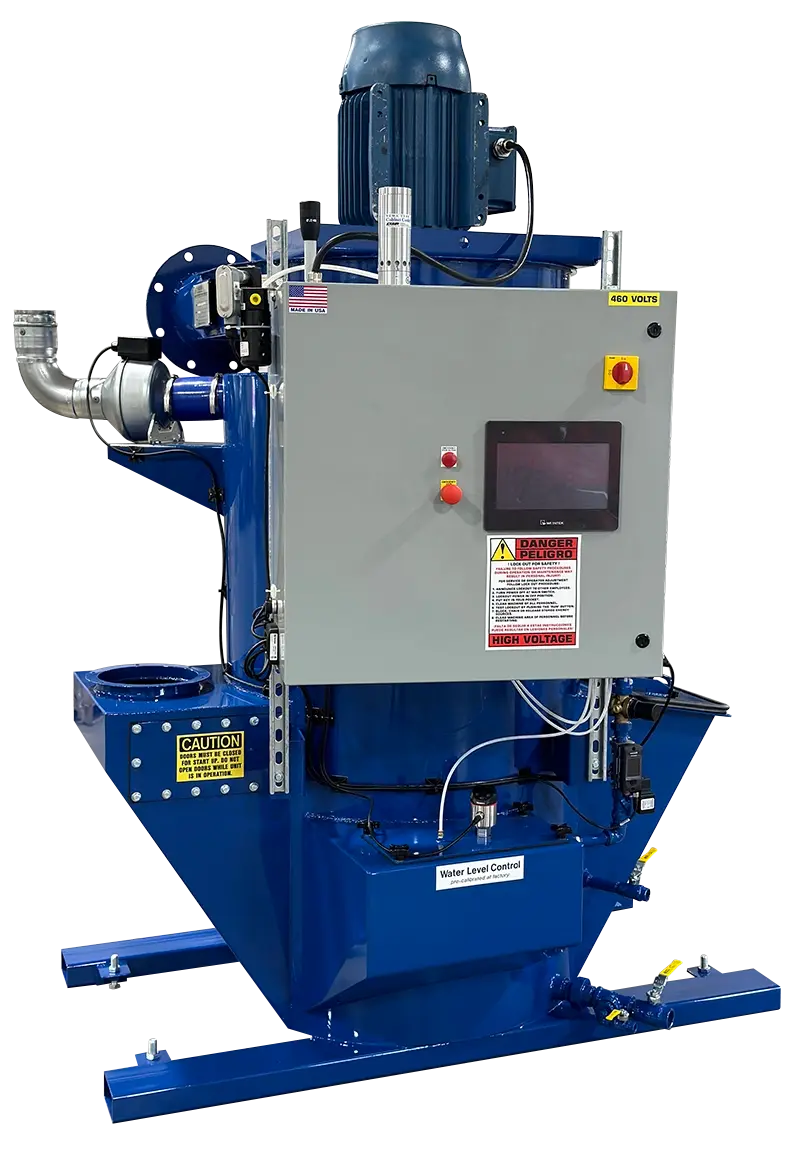

The AccuScrub control panel is an advanced control option designed for wet dust collection systems that require higher visibility, safer operation, and more process integration. With a 7-inch touchscreen, ultrasonic water level control, process interlock, and alarm capability, the AccuScrub supports monitored operation and control of the dust collector and selected optional components.
Standard Features
- NFPA 660 compliant
- NEMA 3R / 4 / 12 enclosure
- 7-inch touchscreen
- Real-time system data and control visibility
- Auto drain-refill option support
- Fault acknowledgement and reset
- Ultrasonic water level control
- Face-mounted rotary disconnect
- E-stop
- 24 Volt DC components
- Process interlock
- Stack light with audible and visual alarms
- Remote start / stop optional
- Sludge conveyor operation via VFD
The AccuScrub Pro control panel expands on the AccuScrub platform with a larger 10-inch touchscreen and additional control capability for more advanced system operation. It supports real-time system monitoring, optional component control, and variable frequency drive operation for improved fan speed adjustment and scrub pressure control.
Standard Features
- NFPA 660 compliant
- NEMA 3R / 4 / 12 enclosure
- 10-inch touchscreen
- Real-time system data and control visibility
- Auto drain-refill support
- Sludge conveyor control
- Fault acknowledgement and reset
- Ultrasonic water level control
- Face-mounted rotary disconnect
- E-stop
- 24 Volt DC components
- Process interlock
- Stack light with audible and visual alarms
- Remote start / stop ready
- Variable Frequency Drive (VFD)
- Manual or automatic fan RPM control for optimal efficiency
AccuPulse controls are designed for dry dust collection systems that require dependable pulse-cleaning control and practical day-to-day operation. These controls support reliable system performance, operator visibility, and application-specific configuration for cartridge dust collector installations.
Typical Applications
- Cartridge dust collector systems
- Dry dust collection applications
- Industrial dust collector controls
- Pulse-cleaning control systems
ProVent combines controls engineering expertise with industrial dust collection knowledge to deliver practical, application-specific solutions for modern manufacturing. From basic motor controls to advanced touchscreen automation, ProVent helps customers improve safety, reduce waste, standardize operation, and build control systems that support long-term production goals.
Why ProVent
- Custom-engineered control solutions
- UL 508A panel shop expertise
- Industrial-grade branded components
- Application-specific integration
- Advanced automation capability
- Improved safety and visibility
What does ProVent Controls Engineering support?
ProVent supports automation, controls integration, monitoring, and custom control panel development for dust collection systems and other industrial processes.
Does ProVent build UL 508A panels?
Yes. ProVent is a UL 508A Certified Panel Shop.
What is the difference between AccuScrub and AccuScrub Pro?
AccuScrub Pro includes a larger touchscreen and expanded control capability, including VFD-based fan speed control.
Are remote start and stop options available?
Yes. Remote start / stop is available on certain control panel configurations.
Can ProVent help with new automation projects?
Yes. ProVent can assist with both existing system integration and new automation technologies.
Base Control Options
Low-cost options where advanced features are not needed. These are an excellent choice for someone who doesn't need NFPA compliance.
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Plastic Enclosure
- Float Water Level Control
- Sludge Conveyor Operation via VFD
- Motor Control via Rotary Knob
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- Float Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 110 Volt AC Components
- Indicator Lights for motor status
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
- Fully NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- 7-inch Touchscreen
Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, fault acknowledgement and reset)
- Ultrasonic Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
- Fully NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- 10-inch Touchscreen
Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, sludge conveyor, fault acknowledgement and reset)
- Ultrasonic Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Ready
- Variable Frequency Drive (VFD)
Provides manual or automatic control of fan RPM to ensure optimal scrub pressure at maximum efficiency.
