Bin Vent Dust Collector
The Intercept BV series is a bin vent dust collector designed to control dust from silos, storage bins, and other vented process points where airborne particulate must be contained before it escapes into the atmosphere. With vertically mounted MERV 15 cartridge filters, pulse cleaning, and compact top-of-bin installation, the Intercept BV provides a practical dust collection system for loading, unloading, and material transfer applications.
No two applications are the same, and your dust collection system shouldn’t be either. ProVent designs and manufactures custom engineered dust collection systems built specifically for your process, facility, and performance requirements.
Submit request for information on stock Bin Vent Dust Collectors:
Subscribe
Be the first to get updates and specials
Share

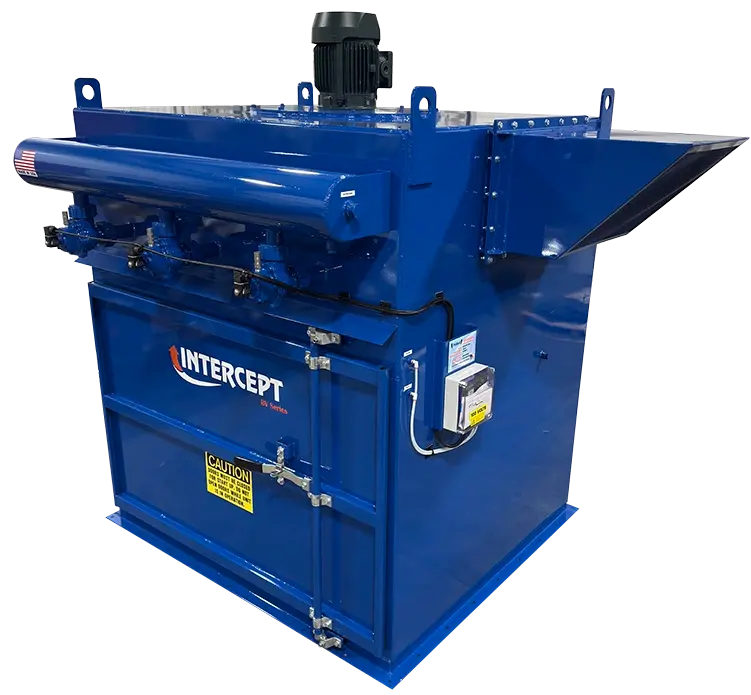

The Intercept BV is a cartridge-style bin vent dust collector engineered for dust containment on bins, silos, and similar storage or process vessels. Standard models range from BV-2 through BV-9, with 2 to 9 vertically mounted filters and 470 to 2,115 square feet of filter media depending on the model. Continuous pulse cleaning helps maintain airflow and extend filter life, while the compact welded housing and CAM-locking filter design support long-term industrial performance and easier maintenance access.
Intercept BV Range
- BV-2 to BV-9 models
- 1,200 to 6,000 CFM suggested airflow
- 2 to 9 filters
- 470 to 2,115 sq. ft. of media
- 1 to 3 pulse valves
The Intercept BV series includes welded connections for fire control equipment and can be configured with options such as explosion venting for applications involving combustible dust. Final equipment selection should be based on the specific material, process conditions, and overall system design requirements.
The Intercept BV series is designed for industrial processes where dust must be controlled at bins, silos, and other enclosed storage points. It is commonly used for silo venting, storage bins, conveyor transfer points, and other applications where dust is displaced during filling or material movement and must be filtered before air is returned to the environment.
Common Applications
- Silos dust
- Storage bins dust
- Conveyor transfer points dust
- Bulk material dust handling
- Loading and unloading operations
- General process venting
The Intercept BV combines compact installation, high-efficiency cartridge filtration, and continuous pulse cleaning in one bin vent dust collector. Standard NANO FIBER fire retardant filters rated MERV 15 provide efficient fine dust capture, while vertically mounted cartridges help simplify maintenance and support reliable dust release during cleaning cycles. The series is also built with solid welded construction, welded fire control connections, and durable industrial coating for long-term operation in demanding plant environments.
Standard Features
- NANO FIBER fire retardant filters - MERV 15
- Continuous pulse filter cleaning

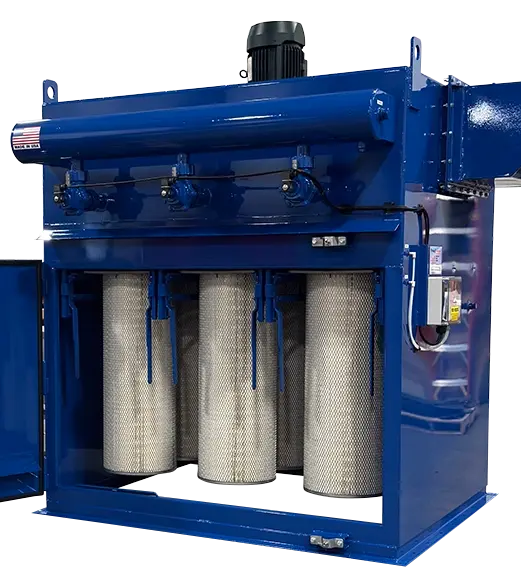

- Vertically mounted cartridge filters
- Dual rail single-push CAM locking assembly
- Solid welded steel housing
- Welded fire control connections
- Durable Durethane DTM coating
- Compact bin vent installation
The Intercept BV series is available in four standard configurations with suggested airflow from 1,200 to 6,000 CFM and suggested air-to-cloth ratios from 2.55 to 2.84. Standard models use 2, 4, 6, or 9 cartridge filters with 34-inch filter height and total filter media ranging from 470 to 2,115 square feet. Pulse cleaning is handled by an E2T differential pressure pulse controller with digital display, and the units require 80 to 90 PSI compressed air with a 1-inch NPT hookup. Depending on the model, the series uses 1 to 3 pulse valves and includes welded 0.5-inch NPT fire control fittings in the housing.
Performance Range
- 1,200 to 6,000 CFM suggested airflow
- 2.55 to 2.84 suggested air-to-cloth ratio
- 2, 4, 6, or 9 filters
- 470 to 2,115 sq. ft. of media
- 1 to 3 pulse valves
- 80 to 90 PSI compressed air
Standard Construction
- 12 gauge solid welded housing
- 34 in. cartridge filters
- Vertically mounted filters with CAM locking assembly
- E2T differential pressure pulse controller with digital display
- Durethane DTM external coating
- 0.5 in. NPT fire control fittings
The Intercept BV series can be configured with several options to match installation, weather exposure, airflow support, and safety requirements. Available options include fan assist with integral direct drive motor and blower, a weather termination hood, a mating flange for standard flange connection, a safety screen to help prevent tools or filters from falling into the bin, and explosion venting for applications where pressure relief is required.
Available Options
- Fan assist
- Weather termination hood
- Mating flange
- Safety screen
- Explosion vent
ProVent industrial dust collectors are designed for dependable performance, durable construction, and practical long-term operation in demanding industrial environments. The Intercept BV series gives customers a compact and effective bin vent dust collector with efficient cartridge filtration, pulse-cleaning performance, and flexible options for bulk material handling and process venting applications.
Why ProVent
- Compact bin vent solutions
- Heavy-duty construction
- High-efficiency filtration
- Reliable pulse-cleaning performance
- Flexible installation options
- Trusted dust collection expertise
Intercept BV Series (PDF)
What sizes are available?
The Intercept BV series is available in four standard models from BV-2 through BV-9.
What airflow range does the series cover?
Depending on the model, suggested airflow ranges from 1,200 to 6,000 CFM.
What filters come standard?
The system uses NANO FIBER fire retardant cartridge filters rated MERV 15.
How is filter cleaning handled?
Pulse cleaning is controlled by an E2T differential pressure pulse controller with digital display.
What compressed air is required?
The BV series requires 80 to 90 PSI compressed air with a 1-inch NPT connection.
Base Control Options
Low-cost options where advanced features are not needed. These are an excellent choice for someone who doesn't need NFPA compliance.
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Plastic Enclosure
- Float Water Level Control
- Sludge Conveyor Operation via VFD
- Motor Control via Rotary Knob
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- Float Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 110 Volt AC Components
- Indicator Lights for motor status
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
Our feature rich control panel with touchscreen controls.
- NEMA 3R/4/12 Enclosure
- 7-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA Filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Optional
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Continuous pulsing
ProVent's premier control panel for Intercept products. The AccuPulse PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.
- NEMA 3R/4/12 Enclosure
- 10-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Ready
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Auto adjust Start/Stop pulse points
- Continuous pulsing
- Variable Frequency Drive (VFD)
- Provides manual or automatic control of fan RPM to ensure optimal system pressure at maximum efficiency for rated CFM.
Intercept BV Specifications
