Booth Wet Dust Collector

The most efficient wet dust collection booths on the market, the Uni-Wash series of wet dust collection booths are capable of collecting dust down to 3 micron in size utilizing only 3" wg.

Wet dust collection is required for the safe collection of combustible metal dust. ProVent’s unique scrub design has been an industry standard for over 50 years and continues to lead the industry in wet dust collection efficiency.

Wet dust collection booths are utilized when source capture of an application is not practical.  Dust from your application will be contained within the booth.  Air is continuously pulled into the Uni-Wash UEWC at the rear of the booth, filtered and exhausted into the ambient air of the facility.

Specifications

Printable Brochure


Booth Wet Dust Collector

The most efficient wet dust collection booths on the market, the Uni-Wash series of wet dust collection booths are capable of collecting dust down to 3 micron in size utilizing only 3" wg.

Wet dust collection is required for the safe collection of combustible metal dust. ProVent’s unique scrub design has been an industry standard for over 50 years and continues to lead the industry in wet dust collection efficiency.

Wet dust collection booths are utilized when source capture of an application is not practical.  Dust from your application will be contained within the booth.  Air is continuously pulled into the Uni-Wash UEWC at the rear of the booth, filtered and exhausted into the ambient air of the facility.

Wet Dust Collector booth painted blue with plastic curtain over entrance

ENCLOSURES

ProVent Enclosures can be manufactured specifically for your process with various sizes and configurations.  Several options are available to further customize.

Sound Insulation
Strip Curtains
Crane Slot
Celling and Side Lighting Configurations

NOTE: Returning air to the front of the booth to be recycled is not recommended by ProVent due to potential health hazards and air flow disruption.  Filtered air should be exhausted to the ambient air of the facility, or exhausted outside. More Information

ENCLOSURES

ProVent Enclosures can be manufactured specifically for your process with various sizes and configurations.  Several options are available to further customize.

  • Sound Insulation
  • Strip Curtains
  • Crane Slot
  • Celling and Side Lighting Configurations

NOTE: Returning air to the front of the booth to be recycled is not recommended by ProVent due to potential health hazards and air flow disruption.  Filtered air should be exhausted to the ambient air of the facility, or exhausted outside. More Information

Low-Cost Operation

Using water as a filtration medium has its advantages. Collected dust resides as a sludge in the bottom of the sump for easy removal or can simply be drained away. There are no disposable filters to replace saving money and air borne contamination hazard. Our scrub design also leads to a lower static pressure requirement in the machine, which means less horsepower is required. This lowers the cost of the machine and saves energy over the life of the machine.

Fan assembly on top of machine with Provent logo

High Efficiency Motors

Since Booths operate at a much lower static pressure requirement, because the only pressure requirement is for the scrub, we do not use scrolled fans. We use plug fans, which in turn saves money on the machine cost. We use high efficiency direct drive motors to lower operating costs over the lifetime of the equipment.

ProVent, A Name You Can Trust

The Uni-Wash wet dust collector has been continuously manufactured for over 50 years and continues to be the leading technology for capturing dust without the added cost of cloth filter media. Initially designed for the safe collection of combustible metal dusts, manufacturers have utilized this technology in many other difficult applications with success in more recent years.

Diagram of scrub system for leaning

Orifice / Impingement Scrub

The large diameter, patented scrub cone assembly works above the water line.  This orifice/impingement design never clogs or loses airflow as with submerged internal venturi designs which gum-up and impede flow over time. There are no pumps or spray nozzles to clog or fail with the Uni-Wash design.

Uni-Wash UEWC Popular Options

Uni-Wash UEWC Popular Options

Performance Upgrade

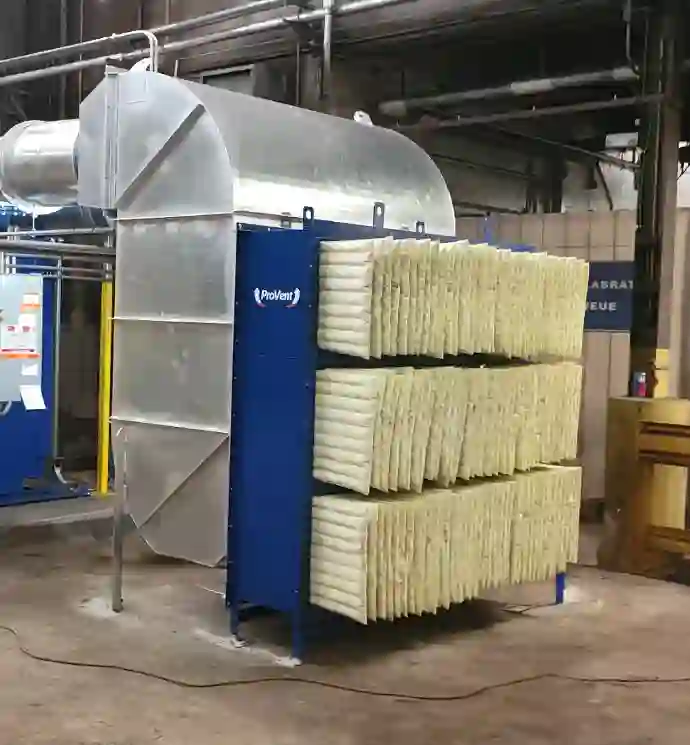

Performance upgrades the use of after-filters.

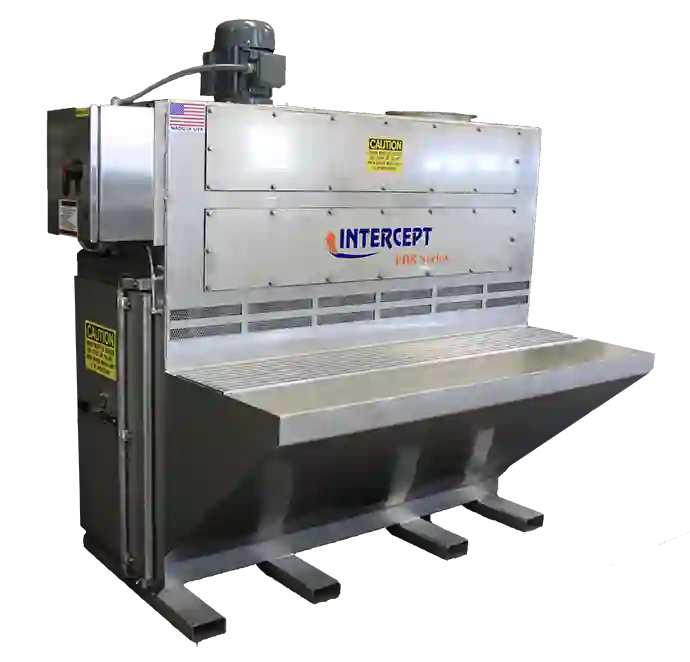

Stainless steel construction is an option on all ProVent products.  Uni-Wash products have an option for the tank (bottom half of collector) to be stainless steel and the upper housing to be mild steel.

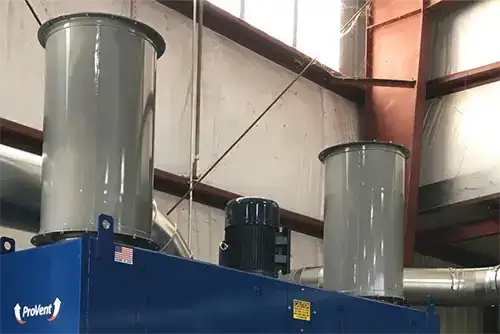

Adding a silencer will decrease the noise emitted via the exhaust air 7-9 decibels

Grey painted silencers installed on top of blue painted machine.

ProVent Controls Logo in whit and orange.

We offer four control options for all Uni-Wash products. We are also a UL 508A certified panel shop, and all panels are manufactured to work seamlessly with our dust collectors.

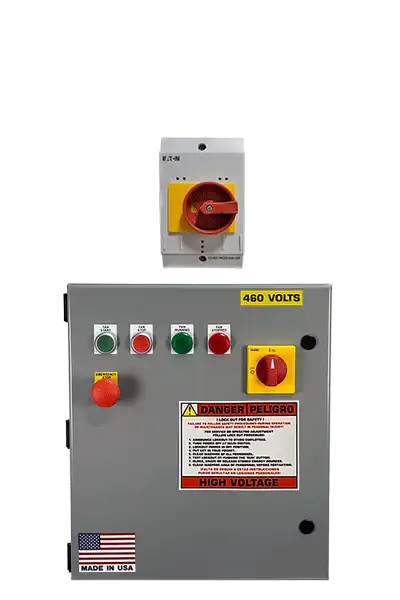

Base control options for machines

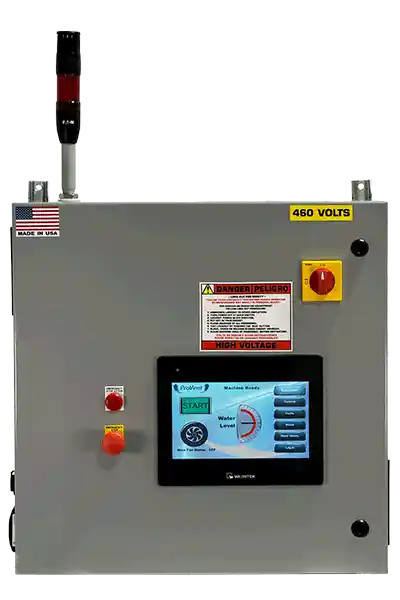

Control panel with 7 inch touchscreen e-stop and alarm stack

Control panel with 10 inch touchscreen e-stop with red light and alarm stack

Base Control Options

Low-cost options where advanced features are not needed. These are an excellent option for down draft benches and booth collectors.
  • Across the Line Motor Starter
    • Not NFPA 484 Compliant
    • NEMA 3R/4/12 Plastic Enclosure
    • Float Water Level Control
    • Sludge Conveyor Operation via VFD
    • Motor Control via Rotary Knob
  • Combination Motor Control
    • Not NFPA 484 Compliant
    • NEMA 3R/4/12 Enclosure
    • Float Water Level Control
    • Face Mounted Rotary Disconnect
    • E-Stop
    • 110 Volt AC Components
    • Indicator Lights for motor status
    • Remote Start / Stop Optional
    • Sludge Conveyor Operation via VFD


AccuScrub Logoin orange and blue.Our feature rich control panel with touchscreen controls.

  • Fully NFPA 484 Compliant
  • NEMA 3R/4/12 Enclosure
  • 7-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, fault acknowledgement and reset)
  • Ultrasonic Water Level Control
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Optional
  • Sludge Conveyor Operation via VFD


AccuScrub Pro logo in orange blue and black.ProVent's premier control panel for Uni-Wash products. The AccuScrub PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.

  • Fully NFPA 484 Compliant
  • NEMA 3R/4/12 Enclosure
  • 10-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, sludge conveyor, fault acknowledgement and reset)
  • Ultrasonic Water Level Control
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Ready
  • Variable Frequency Drive (VFD)
    • Provides manual or automatic control of fan RPM to ensure optimal scrub pressure at maximum efficiency.

Base Control Options

Low-cost options where advanced features are not needed. These are an excellent option for down draft benches and booth collectors.
  • Across the Line Motor Starter
    • Not NFPA 484 Compliant
    • NEMA 3R/4/12 Plastic Enclosure
    • Float Water Level Control
    • Sludge Conveyor Operation via VFD
    • Motor Control via Rotary Knob
  • Combination Motor Control
    • Not NFPA 484 Compliant
    • NEMA 3R/4/12 Enclosure
    • Float Water Level Control
    • Face Mounted Rotary Disconnect
    • E-Stop
    • 110 Volt AC Components
    • Indicator Lights for motor status
    • Remote Start / Stop Optional
    • Sludge Conveyor Operation via VFD

Our feature rich control panel with touchscreen controls.

  • Fully NFPA 484 Compliant
  • NEMA 3R/4/12 Enclosure
  • 7-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, fault acknowledgement and reset)
  • Ultrasonic Water Level Control
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Optional
  • Sludge Conveyor Operation via VFD

ProVent's premier control panel for Uni-Wash products. The AccuScrub PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.

  • Fully NFPA 484 Compliant
  • NEMA 3R/4/12 Enclosure
  • 10-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, sludge conveyor, fault acknowledgement and reset)
  • Ultrasonic Water Level Control
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Ready
  • Variable Frequency Drive (VFD)
    • Provides manual or automatic control of fan RPM to ensure optimal scrub pressure at maximum efficiency.

CONTACT US - We will be happy to answer all of your questions!

CONTACT US

We will be happy to answer all of
your questions!

(City, State)

Uni-Wash UEWC Specifications Back to Top

UEWC-40UEWC-50UEWC-60UEWC-75UEWC-100UEWC-125UEWC-150
Air Flow4,0005,0006,0007,50010,00012,50015,000
Dry Weight (lbs)2,8003,1003,4504,3005,7007,0008,800
TEFC Motor, HP557.51015(2) 7.5(2) 10
Motor / Fan RPM1800180018001800180018001800
Primary Voltage460Volt 3 Phase 60 Hertz
Fan TypeAMCA Rated, Backward Curved, Single Width, Mild Steel
Housing Construction10 Gauge and 3/16", Solid Welded
Scrub Components304 Stainless Steel
Internal Tank CoatingAmerLock-2 by Ameron is a 2-Part Epoxy that provides exceptional corrosion protection in harsh industrial & marine corrosive environments
External CoatingDurethane DTM by PPG is a direct-to-metal Urethane Mastic coating that is chemically resistant and extremely durable. It provides excellent corrosion resistance and has superior color and gloss retention, excellent adhesion, UV protection
Water Level ControlsLow Maintenance mechanical float type with auto shutdown, Optional Ultrasonic Level Sensor and 24V Solenoid Valve in the supply plumbing for electronic water make-up, and high- and low-level emergency shutdown with AccuScrub upgrades.
