Portable Downdraft Table
The Intercept WDT-3500 is a portable downdraft table designed for hand tool applications that require effective source capture, walk-around access, and reliable cartridge filtration. With downdraft ventilation on three sides, full-size MERV 15 filters, and heavy-duty casters for mobility, this industrial downdraft table gives operators a flexible workstation for dust-producing tasks.
No two applications are the same, and your dust collection system shouldn’t be either. ProVent designs and manufactures custom engineered dust collection systems built specifically for your process, facility, and performance requirements.
Submit request for information on stock Portable Downdraft Tables:
Subscribe
Be the first to get updates and specials
The WDT-3500 is a walk-around downdraft table built to provide a spacious, ventilated workstation for larger parts and hand tool applications. Its open design allows material to be placed across the full body of the unit, while downdraft collection is available on three sides to help pull airborne dust away from the work area and breathing zone. With a 95 x 40 inch work deck and portable caster-mounted design, the WDT-3500 is built for both accessibility and mobility within the facility.
Intercept WDT Range
- WDT-3500 portable downdraft table
- 95 x 40 in. work deck
- 3-sided downdraft ventilation
- 3 HP motor
- 760 sq. ft. of filter media
The Intercept WDT-3500 is designed for industrial applications where dust must be captured directly at the workstation while allowing operators room to move around the part. It is well suited for grinding dust collector applications, sanding dust collector applications, welding dust collection, blasting dust collection, and other hand tool processes that benefit from a portable industrial downdraft table walk around bench with strong deck airflow and high-efficiency filtration.
Common Applications
- Grinding dust collector applications
- Sanding dust collector applications
- Welding dust collection
- Blasting dust collection
- Hand tool dust collection
- General industrial finishing

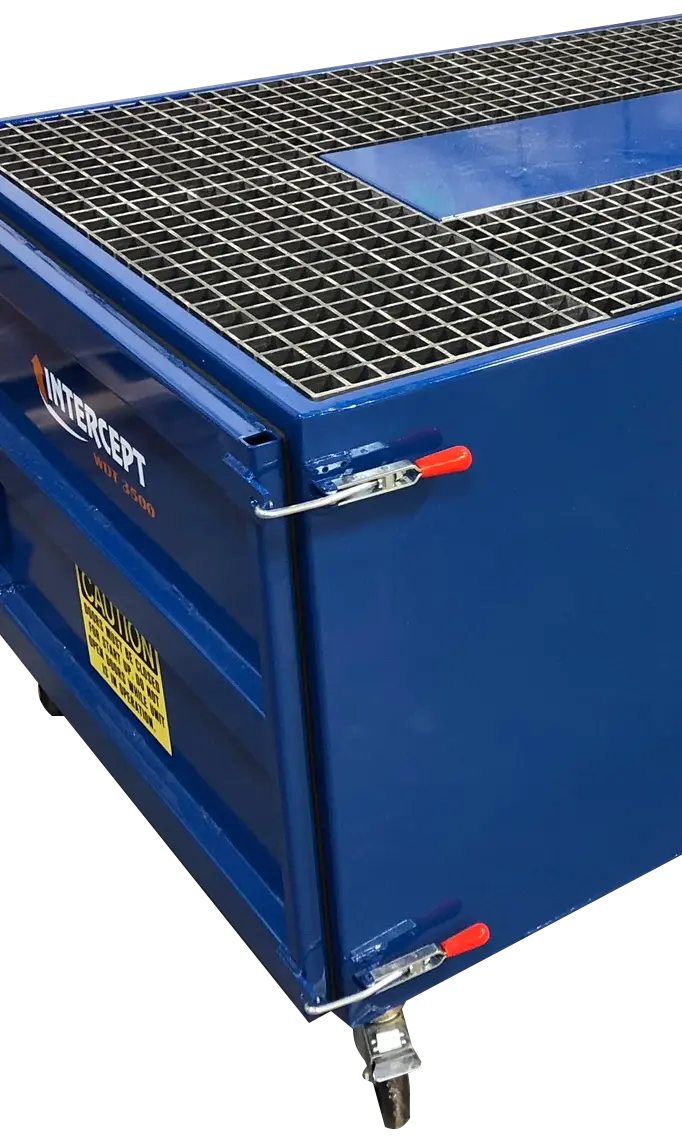

The WDT-3500 combines walk-around access, strong deck airflow, and durable construction in one portable downdraft table. Full-size NANO fire retardant cartridge filters rated MERV 15 provide efficient filtration, while reverse pulse cleaning helps maintain airflow and extend filter life. The fiberglass grated work deck provides a strong, slip-resistant work surface, and 5-inch heavy-duty locking casters make it easier to reposition the unit where needed in the facility.
Standard Features
- Walk-around design with 3-sided ventilation
- NANO fire retardant filters rated MERV 15
- Reverse pulse filter cleaning
- Full-size cartridge filters
- Fiberglass grated work deck
- Heavy-duty welded steel construction
- Integral fan and motor assembly
- 5 in. industrial locking casters
The Intercept WDT-3500 is built around a 3 HP motor and high-efficiency backward curved glass-reinforced polyamide impeller for dependable airflow and compact performance. The unit uses four horizontal cartridge filters with an industry leading total of 760 square feet of media, supported by reverse pulse cleaning with 80 to 90 PSI compressed air and two pulse valves. Average deck velocity is approximately 350 FPM, helping capture dust effectively at the work surface while maintaining a cleaner operator zone. The unit is built with 12 gauge solid welded mild steel construction and a durable Durethane DTM external coating for long-term industrial use.
Performance Range
- 3 HP motor
- 4 cartridge filters
- 760 sq. ft. of media
- Approximately 350 FPM deck velocity
- Reverse pulse cleaning with 80 to 90 PSI compressed air
- 460V / 3PH standard voltage
Standard Construction
- High-efficiency backward curved glass-reinforced polyamide impeller
- Horizontal filter racking
- 12 gauge mild steel solid welded housing
- Durethane DTM external coating
- Fiberglass 1 1/2 x 1 1/2 x 1 1/2 grid work surface
- 95 x 40 in. work deck
The WDT-3500 can be configured with options to support different power requirements and filtration needs. Available upgrades may include alternate voltage configurations and additional filtration enhancements such as HEPA after-filtration where cleaner discharge air is required. These options allow the downdraft table to be adapted more closely to the application and facility requirements.
Available Options
- Alternate voltage configurations
- Additional filtration upgrades
- HEPA after-filtration options
- Application-specific customization
ProVent downdraft benches are designed for reliable source capture, durable construction, and practical day-to-day performance in industrial environments. The Intercept WDT-3500 gives customers a portable industrial downdraft table with full-size filters, strong deck airflow, and a spacious walk-around work area for larger parts and hand tool applications.
Why ProVent
- Portable workstation design
- Full-size industrial filters
- Heavy-duty construction
- Strong deck airflow
- Practical maintenance access
- Trusted dust collection expertise
Intercept WDT Series (PDF)
What is the WDT-3500 used for?
The WDT-3500 is a portable downdraft table used for hand tool applications and other dust-producing tasks that require source capture at the workstation.
What filter efficiency does it offer?
The unit uses NANO fire retardant MERV 15 filters for high-efficiency dust filtration.
How many filters does it use?
The WDT-3500 uses four cartridge filters with 760 square feet of total media.
Is the unit portable?
Yes. The unit includes 5-inch heavy-duty locking casters for portability within the facility.
What kind of work surface does it use?
The standard work deck is a fiberglass grated surface designed for durability, airflow, and slip resistance.
Base Control Options
Low-cost options where advanced features are not needed. These are an excellent choice for someone who doesn't need NFPA compliance.
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Plastic Enclosure
- Float Water Level Control
- Sludge Conveyor Operation via VFD
- Motor Control via Rotary Knob
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- Float Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 110 Volt AC Components
- Indicator Lights for motor status
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
Our feature rich control panel with touchscreen controls.
- NEMA 3R/4/12 Enclosure
- 7-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA Filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Optional
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Continuous pulsing

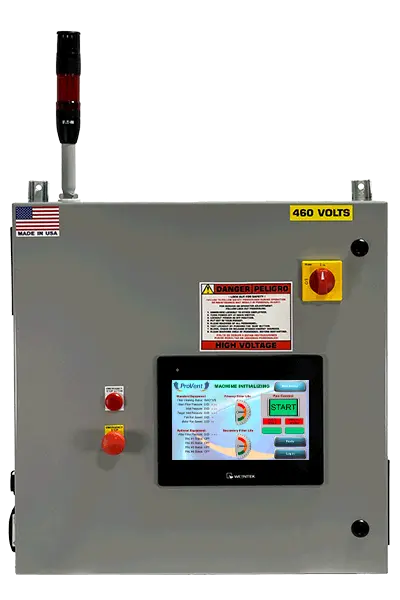

ProVent's premier control panel for Intercept products. The AccuPulse PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.
- NEMA 3R/4/12 Enclosure
- 10-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Ready
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Auto adjust Start/Stop pulse points
- Continuous pulsing
- Variable Frequency Drive (VFD)
- Provides manual or automatic control of fan RPM to ensure optimal system pressure at maximum efficiency for rated CFM.
Intercept WDT Specifications
