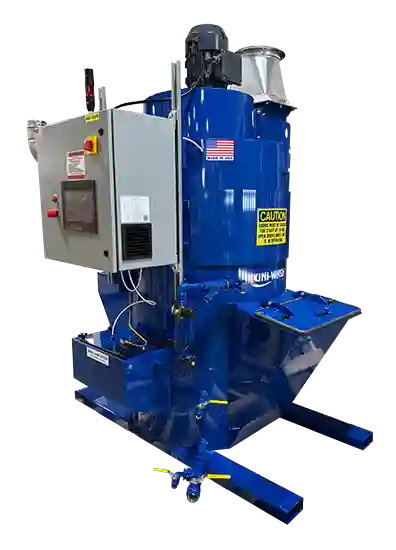

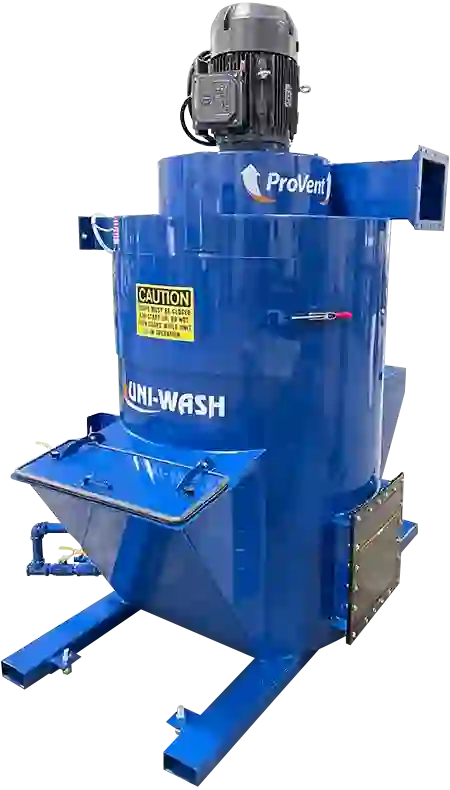

Uni-Wash Machine painted blue with ProVent logo

Uni-Wash UC Series Logo in orange blue and black

Ducted Wet Dust Collector

From 500 CFM to 30,000 CFM
The Uni-wash series stands out as the market's most efficient wet dust collector, capable of capturing dust particles as small as 3 microns with just 3" of water column static pressure.

Wet dust collection is vital for safely gathering combustible metal dust (NFPA 484), and it has proven effective in various challenging environments, including food processing and pharmaceuticals, as an alternative to cartridge collectors. Our scrub design, a longstanding industry standard for over 50 years, remains at the forefront of wet dust collection efficiency.

Specifications ≤ 3,000 CFM

​Printable Brochure ≤ 3,000 CFM

NFPA 484 Compliant

With Industry Leading AccuScrub Controls

Uni-Wash wet dust collectors meet NFPA 484 standards for capturing combustible metal dusts from processes involving aluminum, magnesium, titanium, and zirconium (when paired with the AccuScrub Control Panel).

If your process involves these materials, Uni-Wash collectors significantly reduce fire and explosion risks, ensuring worker safety and compliance. They are self-contained with minimal water usage after initial fill and boast straightforward installation and start-up.

​Specifications​ ≥ 4,000 CFM

​Printable Brochure​ ≥ 4,000 CFM

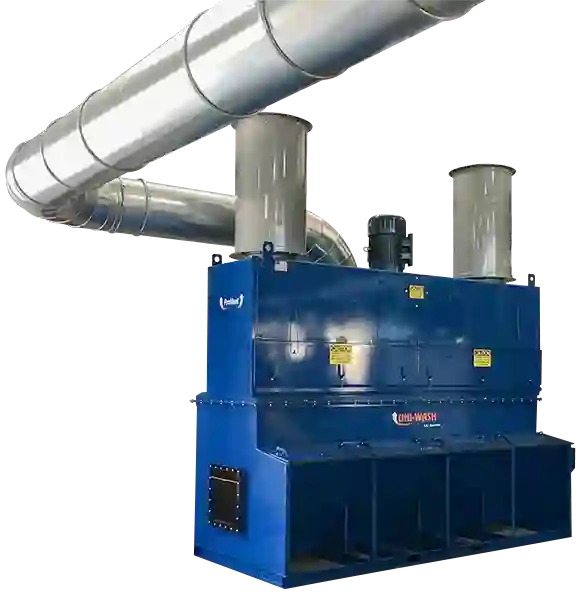

Uni-Wash machine with silencers on top and ducting attached

Low-Cost Operation

Using water as a filtration medium offers advantages. Dust collects as sludge in the sump, facilitating easy removal or drainage. With no disposable filters to replace, costs are reduced, and airborne contamination risks minimized. Additionally, our scrub design reduces the machine's static pressure requirement, resulting in lower horsepower needs, thus reducing both initial and lifetime energy costs.

High Efficiency Motors

Booths operate at a lower static pressure, only requiring pressure for scrubbing, eliminating the need for scrolled fans. Instead, we use plug fans, reducing machine costs. Additionally, high-efficiency direct-drive motors lower operating costs throughout the equipment's lifespan.

ProVent, A Name You Can Trust

The Uni-Wash wet dust collector, in production for over 50 years, remains a leading technology for capturing dust without cloth filter media, originally designed for combustible metal dust collection. Manufacturers have since applied this successful technology to various challenging applications.

Orifice / Impingement Scrub

The patented scrub cone assembly, with its large diameter, operates above the water line. Unlike submerged internal venturi designs prone to clogging and airflow reduction over time, this orifice/impingement design remains clear. With Uni-Wash, there are no pumps or spray nozzles to clog or malfunction.

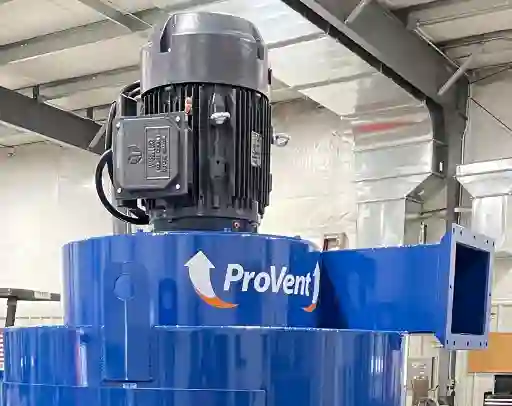

Fan motor mounted on top of ProVent machine
scrub cone assembly diagram

Uni-Wash UC Popular Options

Performance Upgrade​

Performance upgrades for additional static pressure when needed for long duct runs or the use of after-filters.

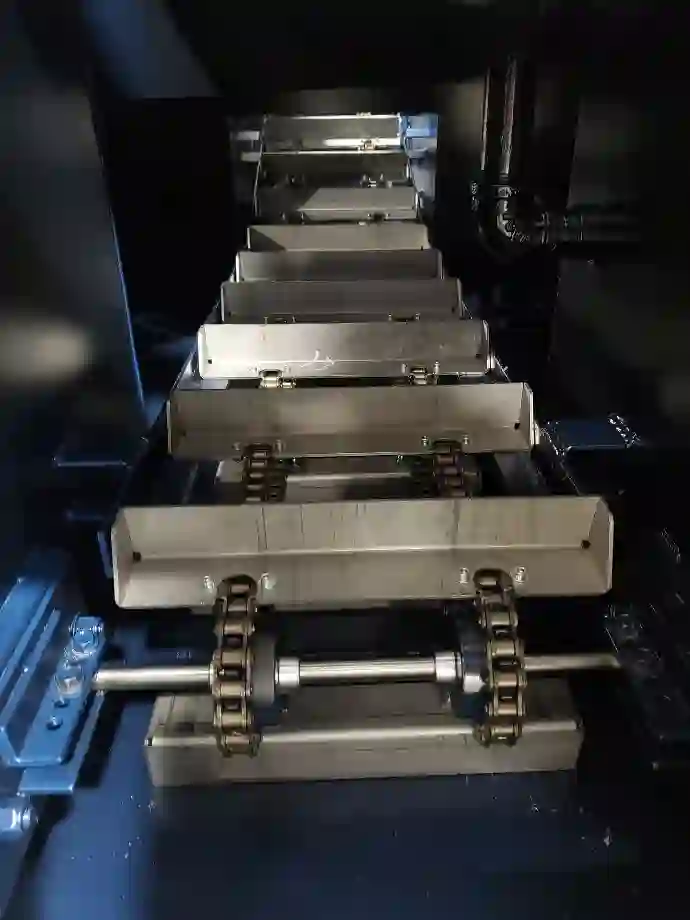

A single strand or double strand sludge conveyor will remove collected dust from the bottom of the tank.  Typically used in heavy loading processes.

Conveyor gooseneck with motor and gearbox combination on left hand side, conveyor dragflights on right hand side

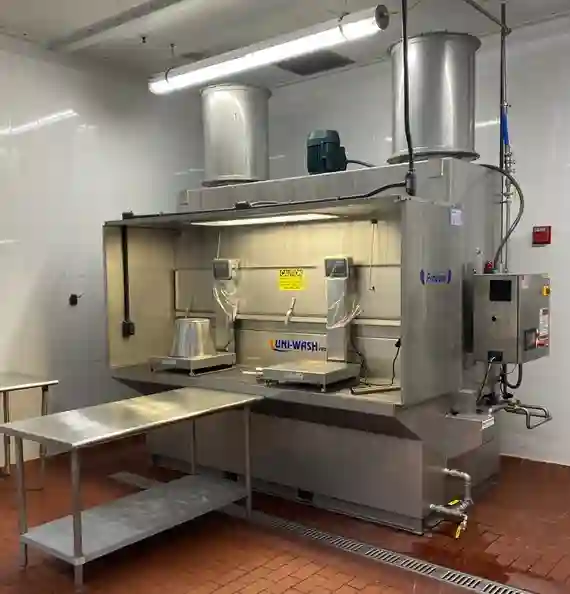

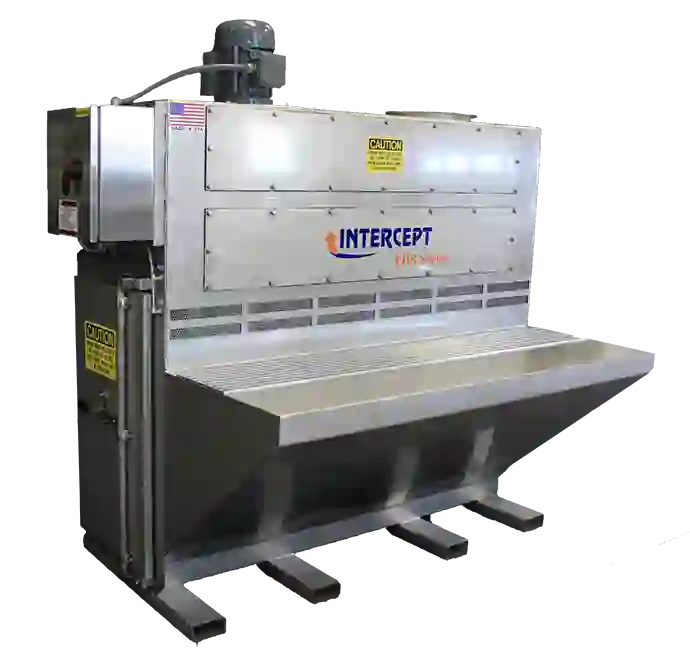

Stainless steel construction is an option on all ProVent products.  Uni-Wash products have an option for the tank (bottom half of collector) to be stainless steel and the upper housing to be mild steel.

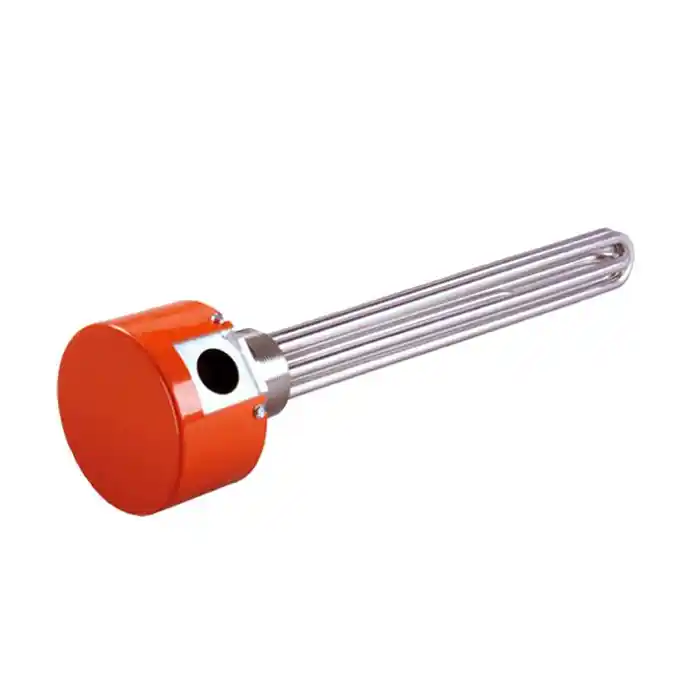

An immersion heater can be installed for wet collectors that will be installed outside where the temperature may be below freezing.

Adding a silencer will decrease the noise emitted via the exhaust air 7-9 decibels.

Round silencers mounted on top of machine with motor in the middle of them

ProVent Controls logo in whit and orange

We offer four control options for all Uni-Wash products. We are a UL 508A certified panel shop and all panels are manufactured to work seamlessly with our dust collectors.

Base control options for machines

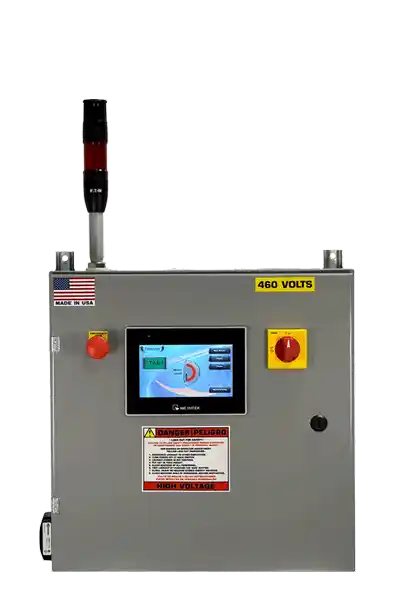

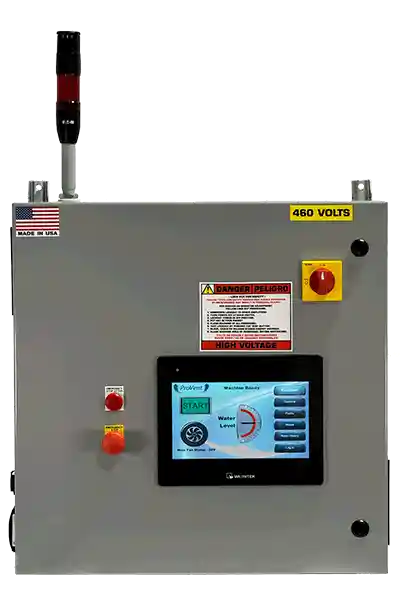

Control panel with 7 inch touchscreen e-stop and alarm stack

Control panel with 10 inch touchscreen e-stop with red light and alarm stack

Base Control Options

Low-cost options where advanced features are not needed. These are an excellent option for down draft benches and booth collectors.
  • Across the Line Motor Starter
    • Not NFPA 484 Compliant
    • NEMA 3R/4/12 Plastic Enclosure
    • Float Water Level Control
    • Sludge Conveyor Operation via VFD
    • Motor Control via Rotary Knob

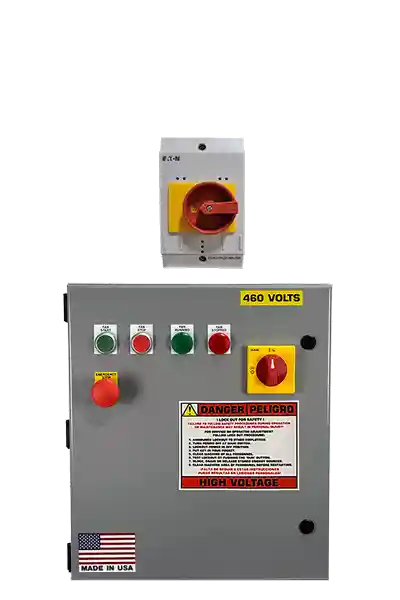

  • Combination Motor Control
    • Not NFPA 484 Compliant
    • NEMA 3R/4/12 Enclosure
    • Float Water Level Control
    • Face Mounted Rotary Disconnect
    • E-Stop
    • 110 Volt AC Components
    • Indicator Lights for motor status
    • Remote Start / Stop Optional
    • Sludge Conveyor Operation via VFD


AccyScrub Logo in orange and blueOur feature rich control panel with touchscreen controls.

  • Fully NFPA 484 Compliant
  • NEMA 3R/4/12 Enclosure
  • 7-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, fault acknowledgement and reset)
  • Ultrasonic Water Level Control
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Optional
  • Sludge Conveyor Operation via VFD


AccuScrub Pro logo in orange blue and blackProVent's premier control panel for Uni-Wash products. The AccuScrub PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.

  • Fully NFPA 484 Compliant
  • NEMA 3R/4/12 Enclosure
  • 10-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (Auto drain-refill, sludge conveyor, fault acknowledgement and reset)
  • Ultrasonic Water Level Control
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Ready
  • Variable Frequency Drive (VFD)
    • Provides manual or automatic control of fan RPM to ensure optimal scrub pressure at maximum efficiency.

CONTACT US - We will be happy to answer all of your questions!

(City, State)

Uni-Wash UC 500-3,000 CFM Specifications Back to Top

UC-5 UC-10 UC-20 UC-25 UC-30
Air Flow (CFM) 500 1,000 2,000 2,500 3,000
Total SP (in. Wg) 7.5 7.5 9 8.25 7
External SP (in. Wg) 5 5 6 6 4
Motor / Fan (RPM) 3600
TEFC Motor (HP) 1.5 2 5 5 5
Drive Config Direct
Primary Voltage 460Volt 3 Phase 60 Hertz
Dry Weight (lbs) 400 650 720 850 960
Tank Capacity (US GAL) 20 42 87 97 113
Fresh Water Connection 3/4" NPT, Female
Drain Connection 1 1/4" NPT, Female
Integral Fans IRF-122 53% Injection Molded GRP Polyamide Backward Curved Airfoil
Spark Resistant, Corrosion-proof, Stronger than Steel / Half the Weight / Lower HP
Housing Construction Welded Mild Steel / Stainless Steel Scrub Components
Scrub Components 304 Stainless Steel
Internal Tank Coating AmerLock-2 by Ameron is a 2-Part Epoxy that provides exceptional corrosion protection in harsh industrial & marine corrosive environments
External Coating Durethane DTM by PPG is a direct-to-metal Urethane Mastic coating that is chemically resistant and extremely durable. It provides excellent corrosion resistance and has superior color and gloss retention, excellent adhesion, UV protection
Water Level Control
STANDARD
Low Maintenance mechanical float type with auto shutdown
Water Level Control
AccuScrub Panels
Ultrasonic Level Sensor and 24V Solenoid Valve in the supply plumbing for electronic water make-up with high- and low-level emergency shutdown

Uni-Wash UC 4,000-30,000 CFM Specifications Back to Top

UC-40 UC-50 UC-60 UC-75 UC-100 UC-125 UC-150 UC-200 UC-250 UC-300
Air Flow (CFM) 4,000 5,000 6,000 7,500 10,000 12,500 15,000 20,000 25,000 30,000
Total SP (in. Wg) 13 12 11.5 13 11 11.5 12 11 11.5 12
Total SP (in. Wg) 10 9 8.5 10 8 8.5 9 8 8.5 9
Motor / Fan (RPM) 3600 1800
TEFC Motor (HP) 15 20 20 25 30 40 50 30 (x2) 40 (x2) 50 (x2)
Drive Config Direct
Primary Voltage 460Volt 3 Phase 60 Hertz
Dry Weight (lbs) 3,100 3,500 3,900 4,300 4,800 5,400 10,000 12,500 16,000 18,500
Tank Capacity (US GAL) 260 289 330 428 577 713 683 853 1,066 1,310
Fresh Water Connection 3/4" NPT, Female
Drain Connection 1 1/4" NPT, Female 2" NPT, Female
Integral Fans AMCA Rated, Backward Curved, Single Width, Mild Steel
Housing Construction Welded Mild Steel / Stainless Steel Scrub Components
Scrub Components 304 Stainless Steel
Internal Tank Coating AmerLock-2 by Ameron is a 2-Part Epoxy that provides exceptional corrosion protection in harsh industrial & marine corrosive environments
External Coating Durethane DTM by PPG is a direct-to-metal Urethane Mastic coating that is chemically resistant and extremely durable. It provides excellent corrosion resistance and has superior color and gloss retention, excellent adhesion, UV protection
Water Level Control
STANDARD
Low Maintenance mechanical float type with auto shutdown
Water Level Control
AccuScrub Panels
Ultrasonic Level Sensor and 24V Solenoid Valve in the supply plumbing for electronic water make-up with high- and low-level emergency shutdown
