Ducted Cartridge Collectors

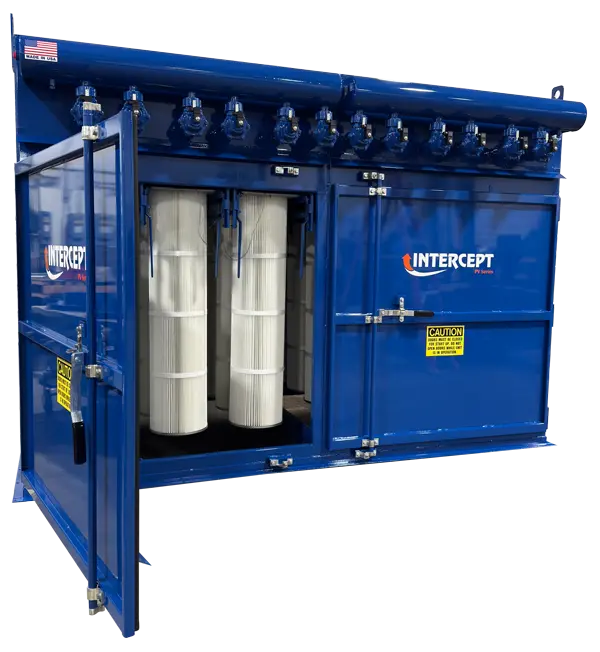

The Intercept™ PV-Series vertical cartridge dust collector can capture and remove most industrial dusts from manufacturing operations. A unique CAM-LOC cartridge locking mechanism securely seals the filter cartridge to the clean air plenum to prevent dust bypass and making filter changing a breeze. A variety of system configurations are available to accommodate space restrictions and application-specific requirements.

All of our cartridge collectors come with industry leading NANO Web Fire Retardant filters. The NANO Web filters have an industry leading MERV-15 efficiency rating. Additionally, Nano Web filters release particulate more efficiently when pulsed. This allows the equipment to maintain advertised flow more consistently and at a lower pressure drop than other filters.

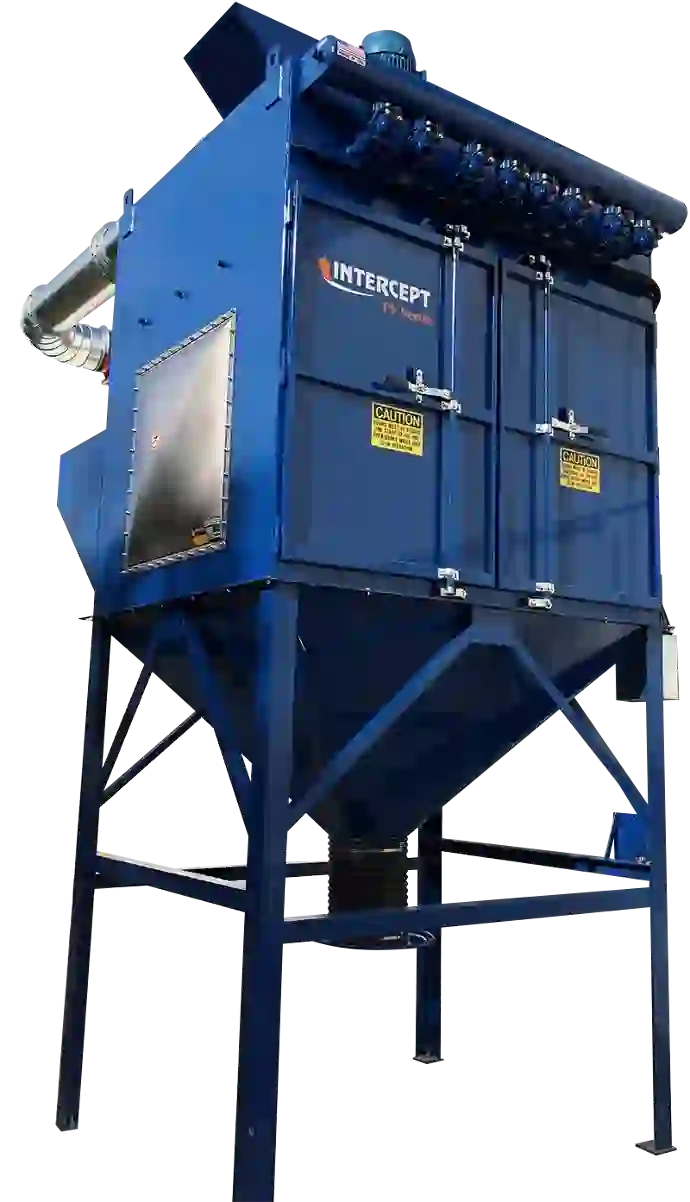

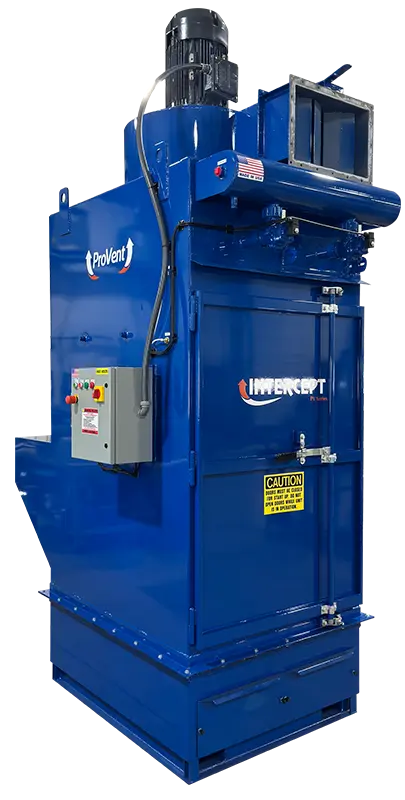

Intercept™ PV shown with optional accessories.

Specifications

Printable Brochure


Ducted Cartridge Collectors

The Intercept™ PV-Series Vertical Cartridge Dust Collector can capture and remove most industrial dusts from manufacturing operations. A unique CAM-LOC cartridge locking mechanism securely seals the filter cartridge to the clean air plenum to prevent dust bypass and making filter changing a breeze. A variety of system configurations are available to accommodate space restrictions and application-specific requirements.

All ProVent cartridge collectors come with industry leading NANO Web Fire Retardant filters.  The NANO Web filters have an industry leading MERV-15 efficiency rating.   Additionally, Nano Web filters release particulate more efficiently when pulsed.  This allows the equipment to maintain advertised flow more consistently and at a lower pressure drop than other filters.

Intercept PV shown with optional accessories.

AccuPulse logo in white and blue

Our proprietary combined motor and pulse technology is a major advancement in current dust control systems.  This advancement will prolong filter life and clean filters more efficiently achieving cost savings that our customers desire.

The AccuPulse PRO controls include a Variable Frequency Drive that will monitor airflow and adjust the fan speed to maintain a constant velocity in the ductwork.  This will eliminate the progressive slowdown of air at pick-up points and dust falling out in the duct leading to expensive cleaning and downtime.

Convenient touchscreen controls have a visual representation of system status including filter pressure.  Additional control features allow our customers to adjust settings to efficiently operate relative to their application.



Base control options for machines


Control panel with 7 inch touchscreen e-stop and alarm stack

Control panel with 10 inch touchscreen e-stop with red light and alarm stack

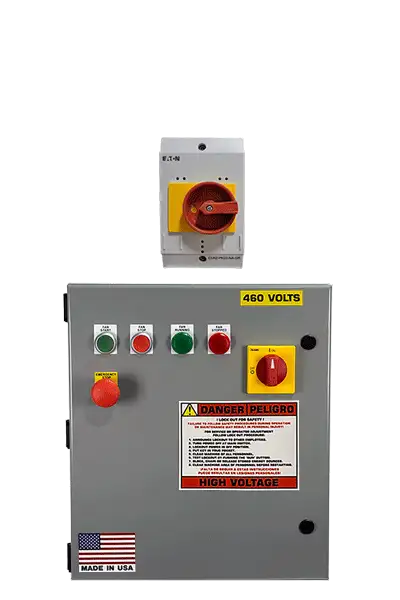

Base Control Options

Low-cost options where advanced features are not needed. These are an excellent option for down draft benches and booth collectors.
  • Across the Line Motor Starter
    • NEMA 3R/4/12 Plastic Enclosure
    • Motor Control via Rotary Knob
  • Combination Motor Control
    • NEMA 3R/4/12 Enclosure
    • Face Mounted Rotary Disconnect
    • E-Stop
    • 110 Volt AC Components
    • Indicator Lights for motor status
    • Remote Start / Stop Optional

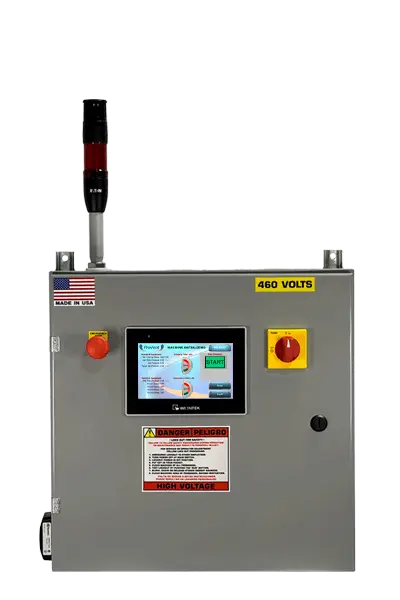

AccuPulse Logo in orange and blueOur feature rich control panel with touchscreen controls.

  • NEMA 3R/4/12 Enclosure
  • 7-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (HEPA Filter pressure, fault acknowledgement and reset)
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Optional
  • Easy select-able pulse settings
    • Continuous pulsing
    • User adjusted Start/Stop pulse points

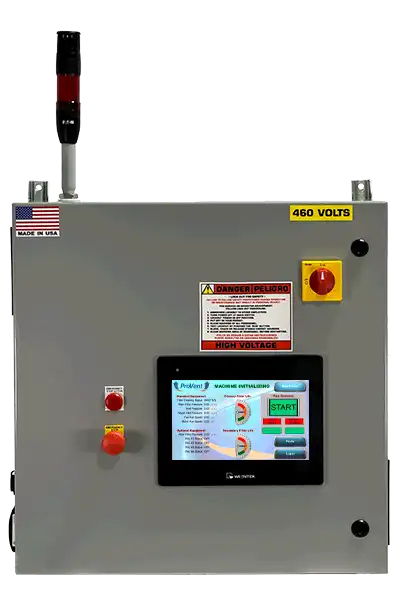

AccuPulse Pro logo in orange blue and blackProVent's premier control panel for Intercept products. The AccuPulse PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.

  • NEMA 3R/4/12 Enclosure
  • 10-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (HEPA filter pressure, fault acknowledgement and reset)
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Ready
  • Easy select-able pulse settings
    • Continuous pulsing
    • User adjusted Start/Stop pulse points
    • Auto adjust Start/Stop pulse points
  • Variable Frequency Drive (VFD)
    • Provides manual or automatic control of fan RPM to ensure optimal system pressure at maximum efficiency for rated CFM.

Base Control Options

Low-cost options where advanced features are not needed. These are an excellent option for down draft benches and booth collectors.
  • Across the Line Motor Starter
    • NEMA 3R/4/12 Plastic Enclosure
    • Motor Control via Rotary Knob
  • Combination Motor Control
    • NEMA 3R/4/12 Enclosure
    • Face Mounted Rotary Disconnect
    • E-Stop
    • 110 Volt AC Components
    • Indicator Lights for motor status
    • Remote Start / Stop Optional

Our feature rich control panel with touchscreen controls.

  • NEMA 3R/4/12 Enclosure
  • 7-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (HEPA Filter pressure, fault acknowledgement and reset)
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Optional
  • Easy select-able pulse settings
    • Continuous pulsing
    • User adjusted Start/Stop pulse points

ProVent's premier control panel for Intercept products. The AccuPulse PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.

  • NEMA 3R/4/12 Enclosure
  • 10-inch Touchscreen
    • Provides visual real-time data, control of dust collector and optional components (HEPA filter pressure, fault acknowledgement and reset)
  • Face Mounted Rotary Disconnect
  • E-Stop
  • 24 Volt DC Components
  • Process Interlock
    • Connects power supply to the dust collector to the dust producing equipment
  • Stack Light with Audible and Visual Alarms
  • Remote Start / Stop Ready
  • Easy select-able pulse settings
    • Continuous pulsing
    • User adjusted Start/Stop pulse points
    • Auto adjust Start/Stop pulse points
  • Variable Frequency Drive (VFD)
    • Provides manual or automatic control of fan RPM to ensure optimal system pressure at maximum efficiency for rated CFM.

UL 508A Certified Panel Shop

Optional UL 508A certification ensures your control panel complies with nationally recognized safety standards. Gain peace of mind with an industrial control panel that is compliant with national and local electrical codes.

We offers control engineering for your system processes.  We can provide innovative and cost effective integration into your current systems or assist in new automation technologies for your company.  By being a customer-focused solution, our team will take the time to understand your challenges thoroughly before entering the design and programming stage saving time and money.

Red UL logo with letters U and L in a circle

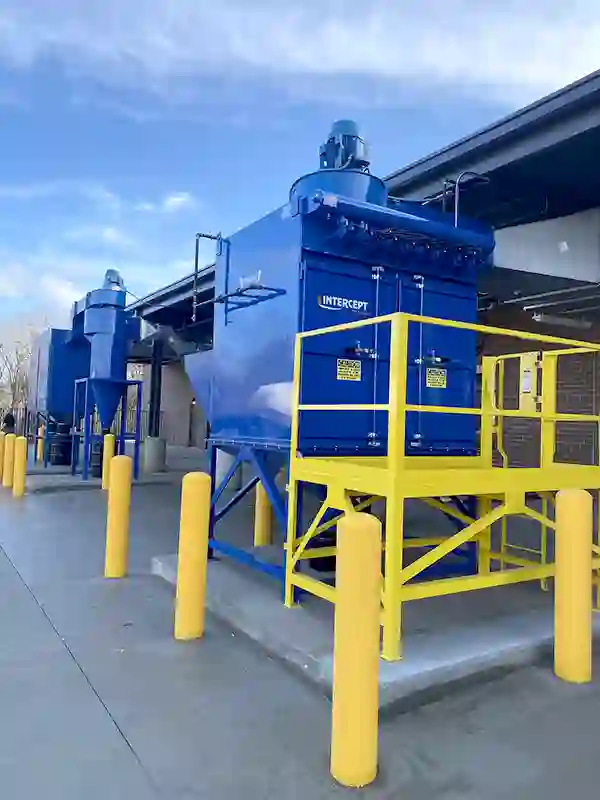

Intercept PV Series machine painted blue with yellow service platform

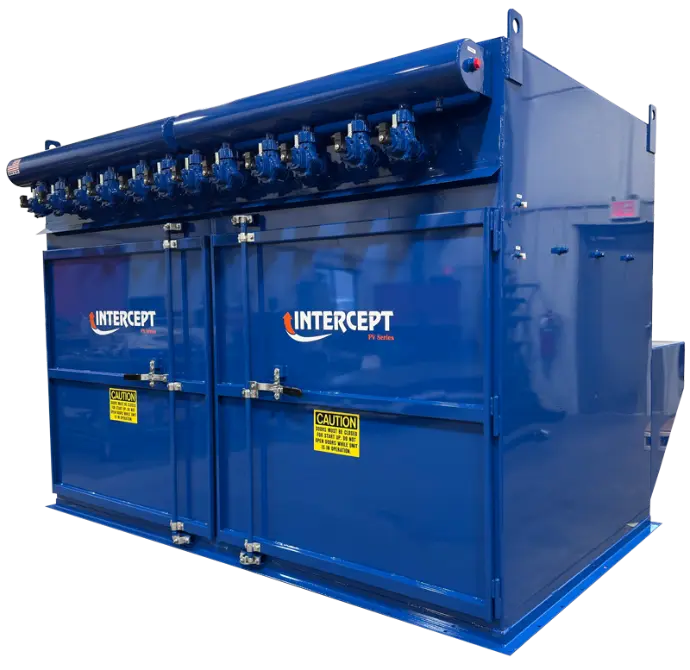

STANDARD CONFIGURATIONS

We offer vertical configurations of 34 inch long and 52 inch long cartridge filters for superior particulate release and reduced footprint.  The fan and motor selection will be made to provide optimum efficiency for your application.

STANDARD
CONFIGURATIONS

ProVent offers vertical configurations of 34 inch long and 52 inch long cartridge filters for superior particulate release and reduced footprint.  The fan and motor selection will be made to provide optimum efficiency for your application.

Intercept PV Popular Options

Intercept PV Popular Options

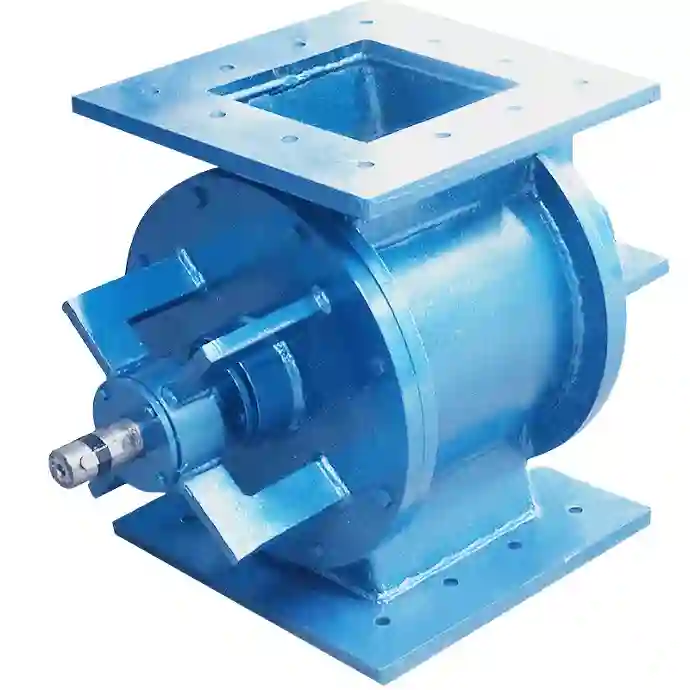

Rotary Air Lock

A rotary air lock can be added to the bottom of the hopper to allow for a custom collection bin

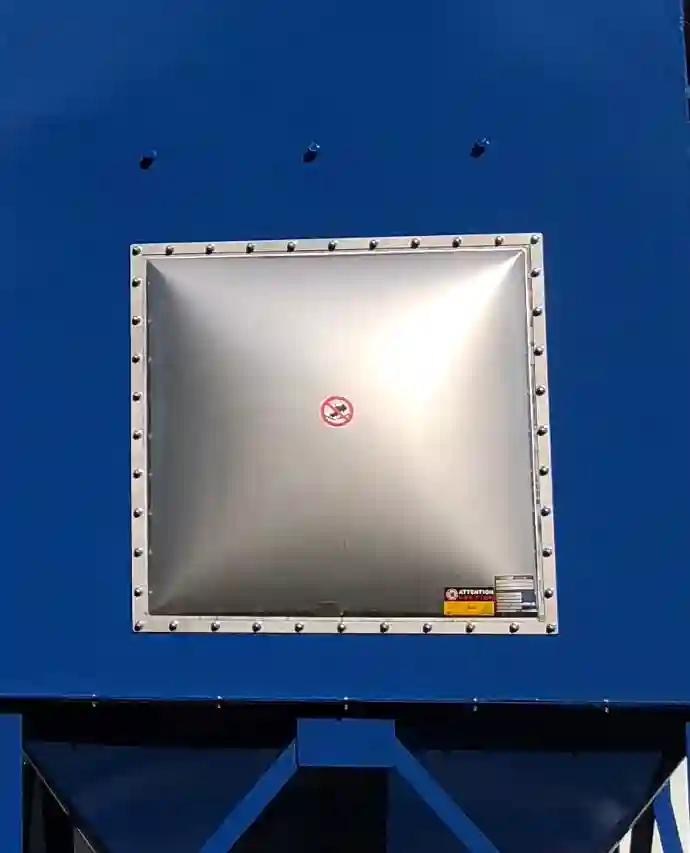

Explosion vents are often required to allow the safe escape of pressure in the case of a dust ignition.

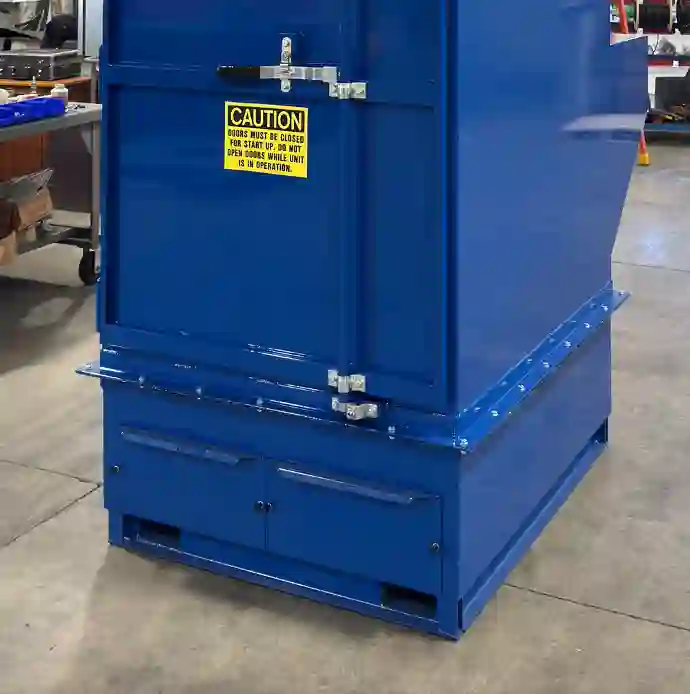

Dust drawers can be installed in place of the hopper / leg stand for light loading applications such as smoke.

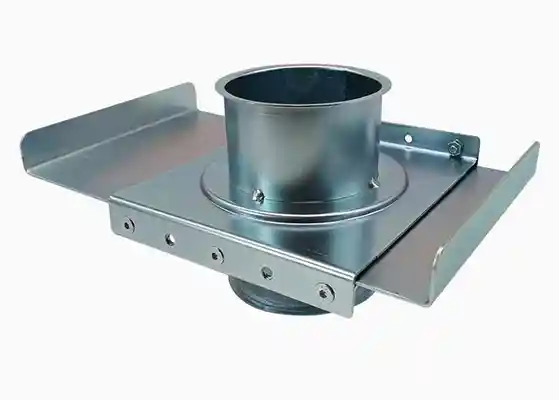

A slide gate and drum connection allows for simple change out of a 55 gallon collection drum replacement.

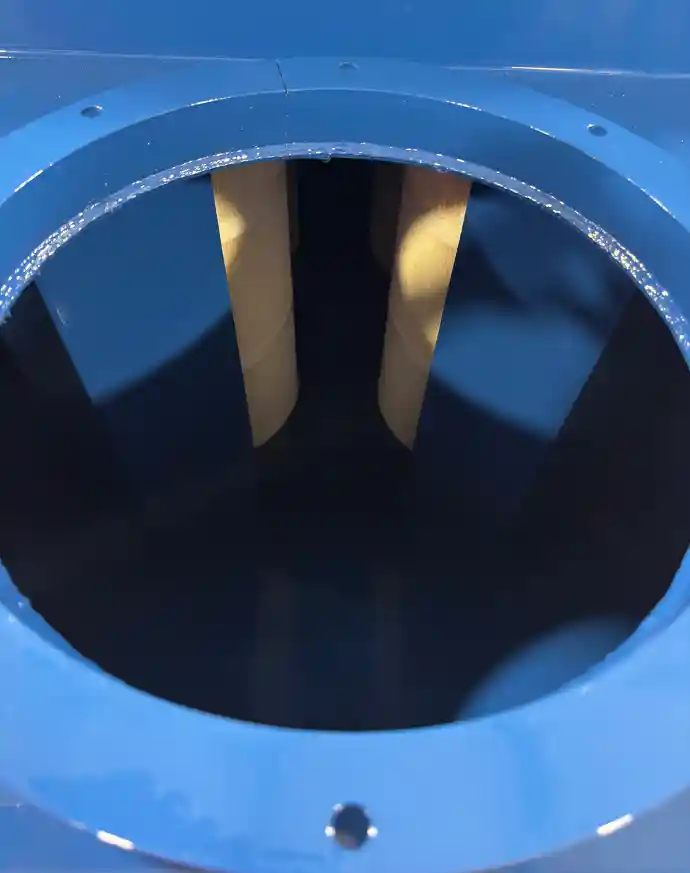

An abrasion deflector plate can be added at the inlet to re-direct abrasive dust away from immediate contact with the cartridge filters which will extend the life of your filters.

Service platforms are available for easy access to the filter doors making filter replacement easy and safe.

CONTACT US - We will be happy to answer all of your questions!

CONTACT US
We will be happy to answer all of your questions!

(City, State)


(City, State)



Intercept PV Specifications Back to Top

Intercept PVPV34-3PV34-4PV34-6PV52-6PV52-9PV52-12PV52-16PV52-24PV52-32
Standard FilterNANO FIBER - FIRE RETARDANT - MERV 15
Pulse ControllerPULSE VALVES: ENCLOSED TIMER WITH DIFFERENTIAL PRESSURE SWITCH [NEMA 4] 115V, SINGLE PHASE, INCLUDES DIGITAL DP GAUGE, CONTROL PANEL READY TO ACCEPT 110V CONNECTION, SHIPPED LOOSE FOR END USER CONVENIENCE
Compressed Air Requirement80-90 PSI REQUIRED HOOK UP 1" NPT COUPLING
Number of Pulse Valves12246681216
Number of Filters3466912162432
Filter Height343434525252525252
SQ. FT. of Media7059401,4102,1603,2404,3205,7608,64011,520
CFM @ Air to Cloth Ratio 1.5:11,0581,4102,1153,2404,8606,4808,64012,96017,280
CFM @ Air to Cloth Ratio 2:11,4101,8802,8204,3206,4808,64011,52017,28023,040
CFM @ Air to Cloth Ratio 2.5:11,7632,3503,5255,4008,10010,80014,40021,60028,800
Filter RackingVERTICALLY MOUNTED FILTERS, SEALING VIA DUAL RAIL PUSH CAM LOCKING ASSEMBLY
FanDIRECT DRIVE, BACKWARD INCLINED WELDED MILD STEEL FAN
Housing Construction10 GA. WELDED STEEL
External CoatingDURETHANE DTM BY PPG: URETHANE MASTIC COATING: COLOR - VENT BLUE
Fire Control.5" NPT FITTINGS WELDED INTO HOUSING FOR THE CONNECTION OF FIRE CONTROL EQUIPMENT
