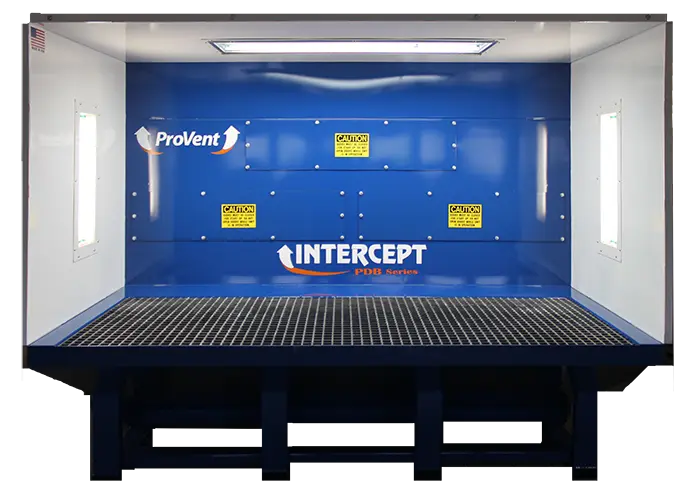

Cartridge Downdraft Bench
The Intercept PDB series is an industrial downdraft bench designed to capture dust at the work surface while delivering strong deck velocity, reliable filtration, and durable welded construction. Available in multiple bench sizes from 24 x 24 inches to 36 x 96 inches, the PDB gives manufacturers a flexible source capture for a downdraft grinding bench, industrial downdraft sanding table, polishing, downdraft welding bench and other dry dust applications.
No two applications are the same, and your dust collection system shouldn’t be either. ProVent designs and manufactures custom engineered dust collection systems built specifically for your process, facility, and performance requirements.
Submit request for information on stock Cartridge Downdraft Benches:
Subscribe
Be the first to get updates and specials
The Intercept PDB is a cartridge-based downdraft bench engineered to pull dust downward through the work surface and into high-efficiency vertical filter cartridges below the deck. Its ventilated surface extends to within 1 inch of all sides to maximize active capture area, while automatic reverse pulse cleaning helps maintain airflow and extend filter life. Available in eleven standard models, the series gives customers a compact but durable workstation dust collector with deck sizes and airflow capacities suited for a wide range of industrial tasks.
Intercept PDB Range
- 11 standard models
- 24 x 24 in. to 36 x 96 in. deck sizes
- 1,100 to 7,200 CFM
- 367 to 400 FPM deck velocity
- 1 to 7.5 HP motors
The Intercept PDB is well suited for industrial processes where dust must be captured directly at the workstation. It is commonly used for grinding dust collector applications, sanding dust collector applications, polishing dust collector applications, and other dry particulate processes that benefit from source capture dust collection and cleaner operator breathing zones. With multiple bench sizes and airflow capacities, the PDB can be matched to light-duty stations as well as larger, higher-volume work areas.
Common Applications
- Grinding dust collector applications
- Sanding dust collector applications
- Polishing dust collector applications
- Workstation dust collector applications
- General industrial finishing
- Source capture dust collection at the bench
The Intercept PDB combines strong deck airflow, high-efficiency cartridge filtration, and rugged welded construction in one industrial downdraft table. Standard NANO Web filters provide MERV 15 dust collector performance, while automatic reverse pulse cleaning helps maintain airflow and increase filter life. Each unit is fully assembled and fully welded, with heavy-duty steel housing, direct drive fan assemblies, and a Fibergrate fiberglass work deck designed for daily industrial use.
Standard Features
- NANO Web filters rated MERV 15
- Automatic reverse pulse filter cleaning
- Vertically mounted filters with CAM locking assembly
- Fully assembled, fully welded construction
- Heavy-duty welded steel housing
- Fibergrate fiberglass work deck
- Integral direct drive fan assemblies
- NEMA 12 controls with pressure gauge and time delay
- Multiple power options available, including 575 volts
The Intercept PDB series is designed to deliver consistent deck velocity and efficient dust capture across a range of workstation sizes. Standard models provide approximately 367 to 400 FPM deck velocity and airflow from 1,100 to 7,200 CFM, depending on bench size. Motor sizes range from 1 to 7.5 HP, with all standard models using 1800 RPM motor and fan performance. Vertically mounted filters seal through a dual rail push CAM locking assembly, while the direct drive backward inclined welded mild steel fan design supports reliable day-to-day operation in demanding dry dust environments.
Performance Range
- 24 x 24 in. to 36 x 96 in. deck sizes
- 367 to 400 FPM deck velocity
- 1,100 to 7,200 CFM
- 1 to 7.5 HP motors
- 1800 RPM motor / fan speed
Standard Construction
- Vertically mounted filters with CAM locking assembly
- Direct drive backward inclined welded mild steel fan
- 10 ga. welded steel housing
- Durethane DTM urethane mastic coating
- 1/2 in. NPT fire control connection
The Intercept PDB can be configured with several options to improve containment, visibility, ergonomics, and workstation flexibility. Available upgrades include side and ceiling panels, LED lighting, a crane slot, footrest and arm pads, an exhaust silencer, alternate deck materials, compressed air manifolds, and a removable center partition. These options allow the industrial downdraft bench to be tailored to specific workflows, parts, and operator preferences.
Available Options

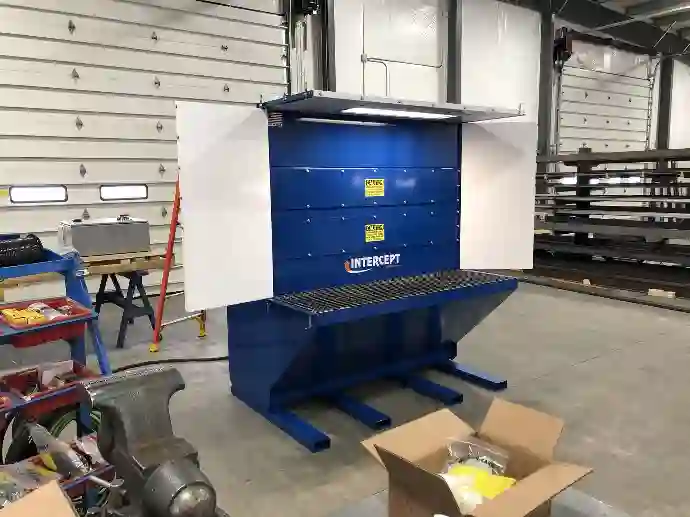

- Side and ceiling panels

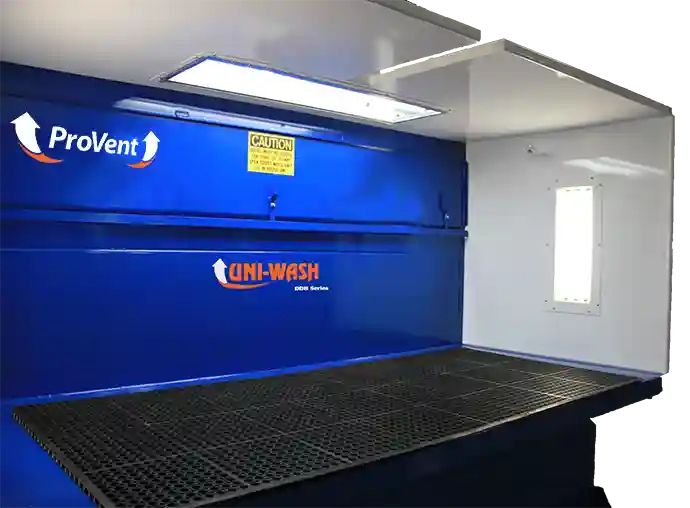

- LED light panel
- Crane slot

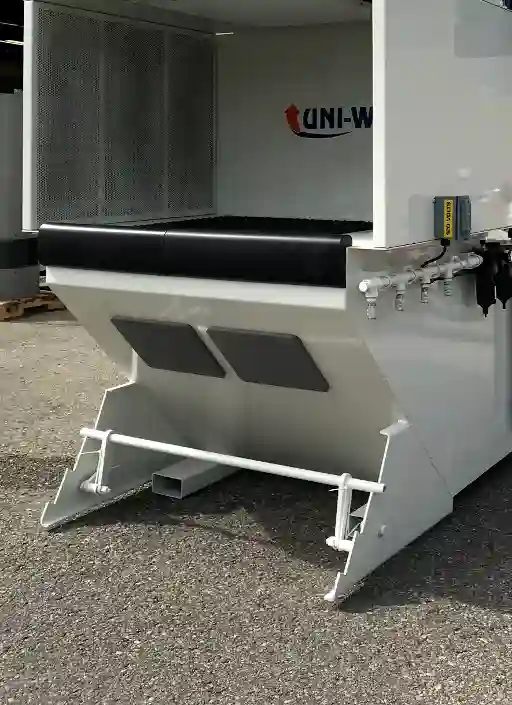

- Footrest and knee pads

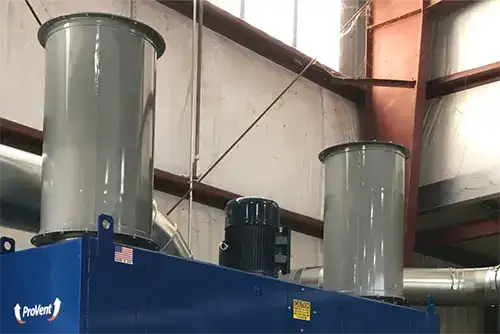

- Exhaust silencer

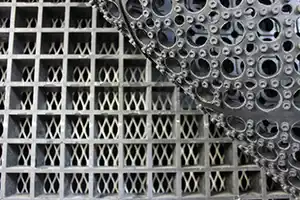

- Alternate work surfaces
- Compressed air manifold

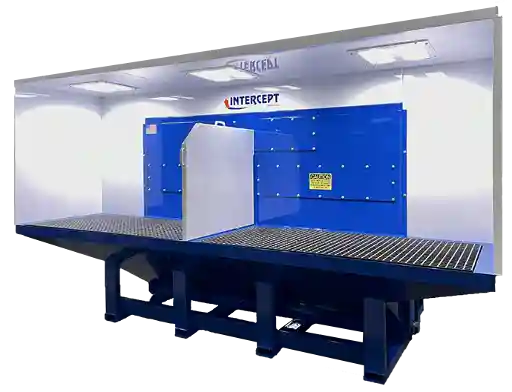

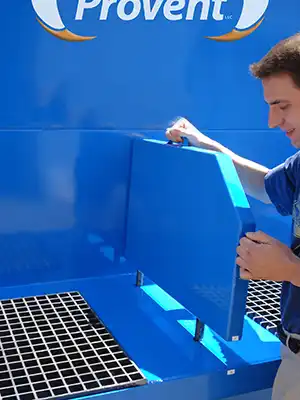

- Center partition
ProVent downdraft benches are built for long-term durability, strong source capture performance, and application-specific flexibility. The Intercept PDB combines heavy-duty welded construction, efficient cartridge filtration, automatic pulse-cleaning performance, and multiple standard model sizes to give manufacturers a dependable industrial downdraft bench for daily production use.
Why ProVent
- Heavy-duty construction
- High-efficiency filtration
- Multiple standard bench sizes
- Proven pulse-cleaning performance
- Flexible configuration options
- Trusted dust collection expertise
Intercept PV Series (PDF)
What sizes are available?
The Intercept PDB is available in standard deck sizes from 24 x 24 inches up to 36 x 96 inches.
What airflow range does the series cover?
Depending on the model, airflow ranges from 1,100 to 7,200 CFM.
What deck velocity does it provide?
Standard models deliver approximately 367 to 400 FPM deck velocity.
What motor sizes are available?
Motor sizes range from 1 to 7.5 HP depending on the bench size and airflow requirement.
How is filter cleaning handled?
Automatic reverse pulse filter cleaning is standard and helps maintain airflow and extend filter life.
Base Control Options
Low-cost options where advanced features are not needed. These are an excellent choice for someone who doesn't need NFPA compliance.
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Plastic Enclosure
- Float Water Level Control
- Sludge Conveyor Operation via VFD
- Motor Control via Rotary Knob
- Not NFPA 660 Compliant
- NEMA 3R/4/12 Enclosure
- Float Water Level Control
- Face Mounted Rotary Disconnect
- E-Stop
- 110 Volt AC Components
- Indicator Lights for motor status
- Remote Start / Stop Optional
- Sludge Conveyor Operation via VFD
Our feature rich control panel with touchscreen controls.
- NEMA 3R/4/12 Enclosure
- 7-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA Filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Optional
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Continuous pulsing
ProVent's premier control panel for Intercept products. The AccuPulse PRO provides optimum efficiency and an easy-to-use 10-inch touchscreen control.
- NEMA 3R/4/12 Enclosure
- 10-inch Touchscreen
- Provides visual real-time data, control of dust collector and optional components (HEPA filter pressure, fault acknowledgement and reset)
- Face Mounted Rotary Disconnect
- E-Stop
- 24 Volt DC Components
- Process Interlock
- Connects power supply to the dust collector to the dust producing equipment
- Stack Light with Audible and Visual Alarms
- Remote Start / Stop Ready
- Easy select-able pulse settings
- Continuous pulsing
- User adjusted Start/Stop pulse points
- Auto adjust Start/Stop pulse points
- Continuous pulsing
- Variable Frequency Drive (VFD)
- Provides manual or automatic control of fan RPM to ensure optimal system pressure at maximum efficiency for rated CFM.
Intercept PDB Specifications
